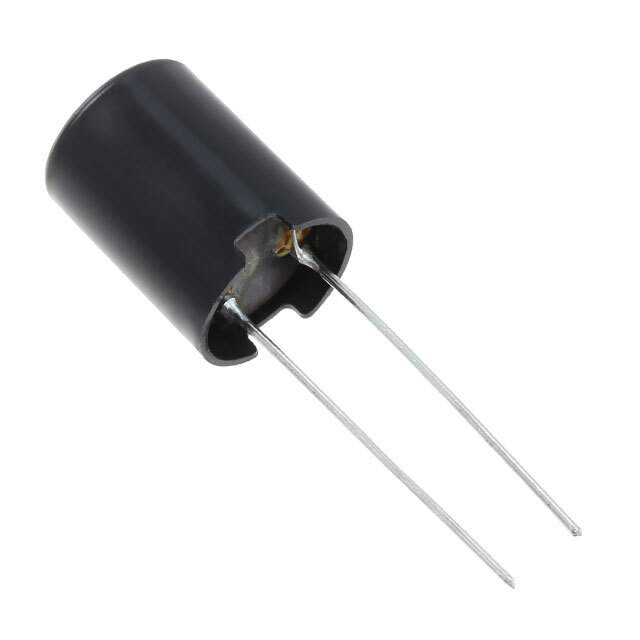

LHL06NB391K Real Image
Same model may have multiple batches, images only for reference.

LHL06NB391K

Part No LHL06NB391K
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 390UH 110MA 3.9 OHM TH / 390 µH Unshielded Inductor 110 mA 3.9Ohm Max Radial, Vertical Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series LH, L Type
Package Bulk
Product Status Obsolete
Material - Core Ferrite
Inductance 390 µH
Tolerance ±10%
Current Rating (Amps) 110 mA
Shielding Unshielded
DC Resistance (DCR) 3.9Ohm Max
Q @ Freq 50 @ 796kHz
Frequency - Self Resonant 3.5MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 796 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.268" Dia (6.80mm)
Height - Seated (Max) 0.433" (11.00mm)
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1350855-LHL06NB391K
Ultra Librarian 3D Model Ultra Librarian LHL06NB391K CAD Model

Description

The Taiyo Yuden 1350855-LHL06NB391K is a fixed inductor with a 390 µH inductance.

  • Inductance: 390 µH
  • Tolerance: ±10%
  • Q @ Freq: 50 @ 796kHz
  • Diameter: 0.268 inches
  • Height: 0.433 inches
  • Shielding: Unshielded
  • Core Material: Ferrite
  • DC Resistance (DCR): 3.9Ohm Max
  • Current Rating: 110 mA
  • Series: LH, L Type
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Standard Package: 500 units
  • Temperature Range: -25°C to 105°C
  • Frequency: 796kHz (testing the inductance)
