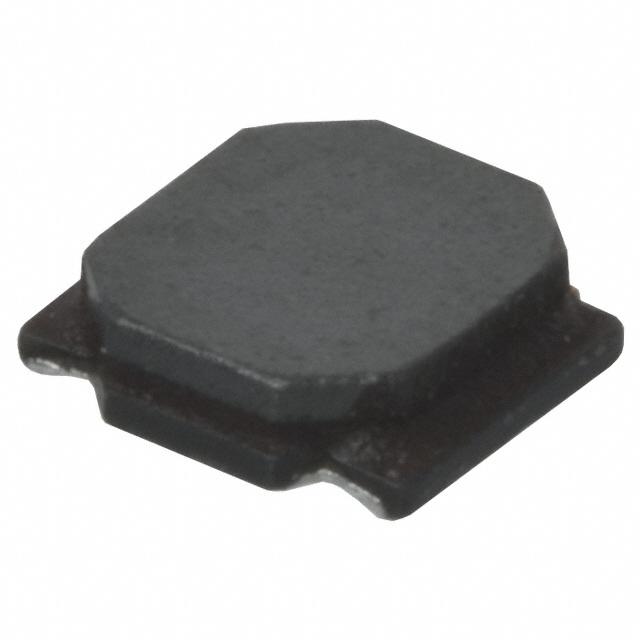

Same model may have multiple batches, images only for reference.
NR3010T220M Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR3010T220M

Part No NR3010T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 350MA 1.236 OHM
Datasheet
NR3010T220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 350mA
Current - Saturation 350mA
DC Resistance (DCR) 1.236 Ohm Max
Frequency - Self Resonant 25MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 025648-NR3010T220M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NR3010T220M CAD Model

Description

The Taiyo Yuden NR3010T220M is a wirewound inductor with an inductance of 22μH and a current rating of 350mA.

  • Material: Ferrite
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.236 Ohm Max
  • Frequency Self-Resonant: 25MHz
  • Category: Inductors, coils, chokes
  • Supply and demand status: Balanced
  • Packaging: Reel - TR
  • Quantity per package: 2k pcs
