Same model may have multiple batches, images only for reference.

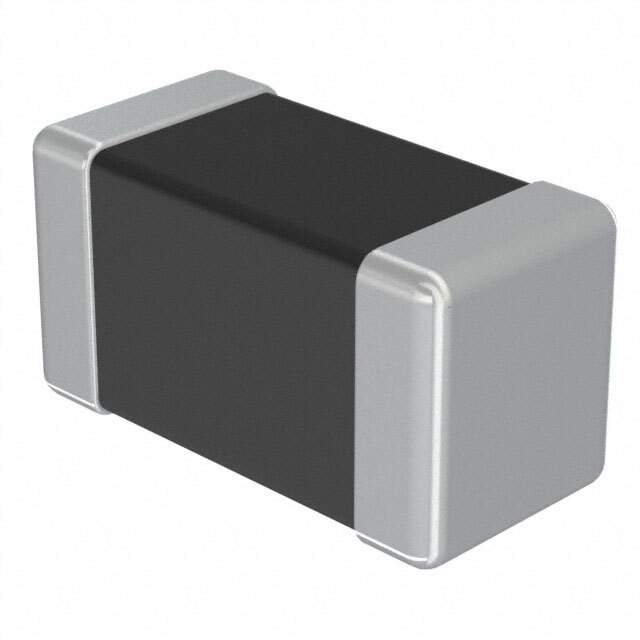

JMK042BJ682KC-W Real Image
Same model may have multiple batches, images only for reference.

JMK042BJ682KC-W

Part No JMK042BJ682KC-W
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 6800PF 6.3V X5R 01005 / 6800 pF ±10% 6.3V Ceramic Capacitor X5R 01005 (0402 Metric)
Datasheet
JMK042BJ682KC-W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel (TR)
Capacitance 6800 pF
Tolerance ±10%
Voltage - Rated 6.3V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications SMPS Filtering
Mounting Type Surface Mount, MLCC
Package / Case 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Thickness (Max) 0.009" (0.22mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names JMK042BJ682KCW,RM JMK042 BJ682KC-W
Standard Package 40,000
Win Source Part Number 1107422-JMK042BJ682KC-W
Ultra Librarian 3D Model Ultra Librarian JMK042BJ682KC-W CAD Model

Description

The Taiyo Yuden M series ceramic capacitor is designed to meet the high demands of SMPS filtering applications.

  • Model: 1107422-JMK042BJ682KC-W
  • Package: 01005 (0402 Metric)
  • Capacitance: 6800 pF
  • Voltage Rating: 6.3V
  • Tolerance: ±10%
  • Temperature Coefficient: X5R
  • Package: Tape & Reel (TR)
  • Standard Package: 40,000 capacitors
  • Thickness: 0.009" (0.22mm)
  • Lead Spacing: No lead spacing
  • Operating Temperature Range: -55°C ~ 85°C
  • Mounting Type: Surface mount
  • Mounting: MLCC mounting
  • Alternative Parts: RM JMK042 BJ682KC-W
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8532.24.0020
