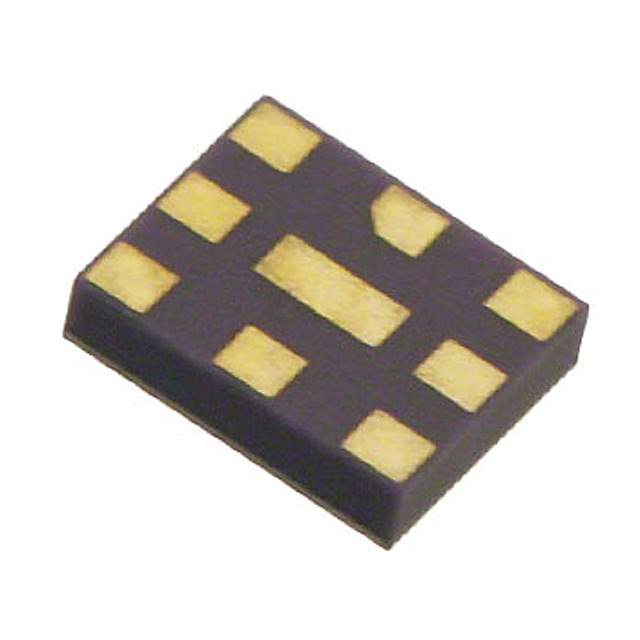

The Taiyo Yuden D6PE1G960P3BP is a RF Multiplexer designed for separating or combining different radio frequency signals in wireless communication systems. These components are critical for efficient signal management and antenna sharing in devices operating across multiple frequency bands.

Applications

• Mobile devices: Used to combine or separate various cellular bands (e.g., 4G LTE, 5G NR).
• Wireless routers and access points: Supports simultaneous operation of multiple Wi-Fi bands (e.g., 2.4 GHz, 5 GHz).
• Base stations: Enables the aggregation of multiple carrier frequencies onto a single antenna.
• Satellite communication: Facilitates the multiplexing of uplink and downlink signals.
• IoT devices: Combines signals from different wireless technologies (e.g., Bluetooth, Wi-Fi, LoRaWAN).

Features

• Low insertion loss: Minimizes signal attenuation, preserving signal strength.
• High isolation: Prevents unwanted signal leakage between different frequency bands.
• Compact size: Enables integration into miniaturized devices.
• Surface Mount Device (SMD): Compatible with automated assembly processes.
• Excellent temperature stability: Ensures consistent performance across a wide range of operating temperatures.

Benefits

• Optimizes antenna performance in multi-band wireless devices.
• Reduces the complexity and cost of antenna systems.
• Improves signal quality and reliability in wireless communication networks.
• Enables smaller and more efficient wireless device designs.

Additional Details

RF multiplexers like the D6PE1G960P3BP typically utilize passive components (inductors and capacitors) to create filter networks that selectively pass or reject signals based on their frequency. Key performance parameters include insertion loss, isolation, return loss, and power handling capability. The specific frequency bands and performance characteristics are tailored to the intended application. Consult the product datasheet for precise technical specifications and recommended usage guidelines.
