Same model may have multiple batches, images only for reference.

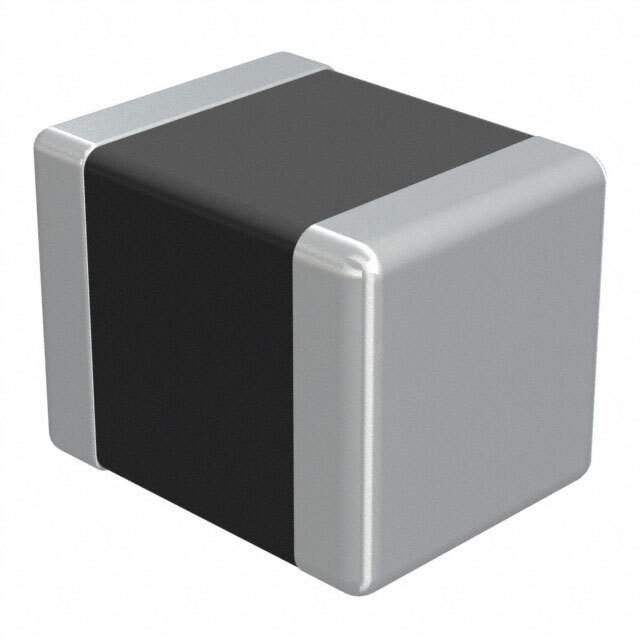

CBC3225T220KR Real Image
Same model may have multiple batches, images only for reference.

CBC3225T220KR

Part No CBC3225T220KR
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description Wire-wound Chip Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series CB
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±10%
Current Rating 780mA
Current - Saturation 620mA
Shielding Unshielded
DC Resistance (DCR) 351 mOhm Max
Frequency - Self Resonant 17MHz
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package 1210
Manufacturer Package 1210
Size 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.106" (2.70mm)
Win Source Part Number 1159276-CBC3225T220KR
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CB
Introduction Date February 10, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian CBC3225T220KR CAD Model

Description

The CBC3225T220KR is a high-quality electronic component that is designed to provide an efficient and reliable solution for various applications, manufactured by Taiyo Yuden.

  • Component Type: Wirewound Inductor
  • Current Rating: 780mA
  • Inductance: 22μH
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Application: Inductor, Coil, and Choke
