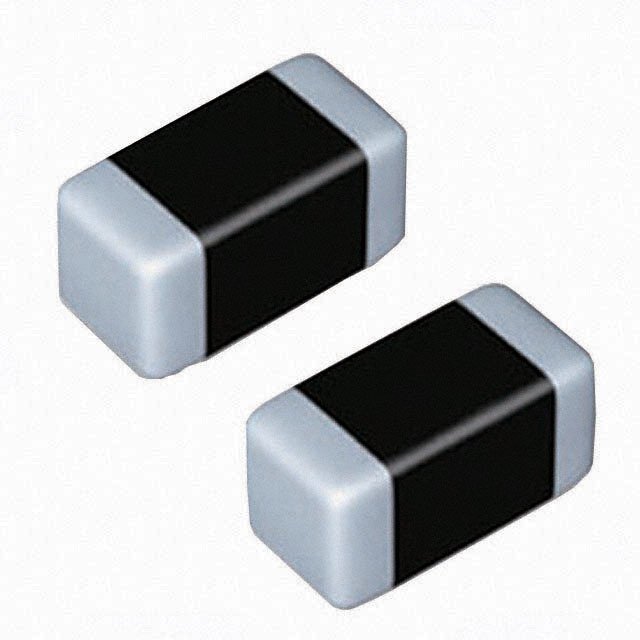

CBC2012T2R2M

Part No CBC2012T2R2M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description Inductor Power Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 0.64A 0.429Ohm DCR 0805 T/R / FIXED IND 2.2UH 640MA 429 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 640mA
Current - Saturation 530mA
DC Resistance (DCR) 429 mOhm Max
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.057" (1.45mm)
Win Source Part Number 012681-CBC2012T2R2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name CB
Introduction Date January 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian CBC2012T2R2M CAD Model

Description

Overview of CBC2012T2R2M

An innovative component, the CBC2012T2R2M is engineered for superior performance in various technological applications. Its design focuses on providing exceptional reliability and functionality.

Features and Benefits

  • High Performance: Delivers consistent results, enhancing the quality of output in applications.
  • Compact and Durable: Small in size yet robust in build, perfect for complex installations.
  • Cost-Effective: Offers high performance with a focus on sustainable, cost-effective solutions.

Applications

  • Agricultural Technologies: Essential in automated and smart farming equipment.
  • Robotics: Supports the precision and functionality required in robotic applications.
  • Environmental Monitoring: Key component for equipment used in environmental data collection.

Additional Details

The CBC2012T2R2M strikes a balance between innovation and practicality, providing solutions that are both cutting-edge and sustainable, making it a preferred choice across fields.
