Same model may have multiple batches, images only for reference.

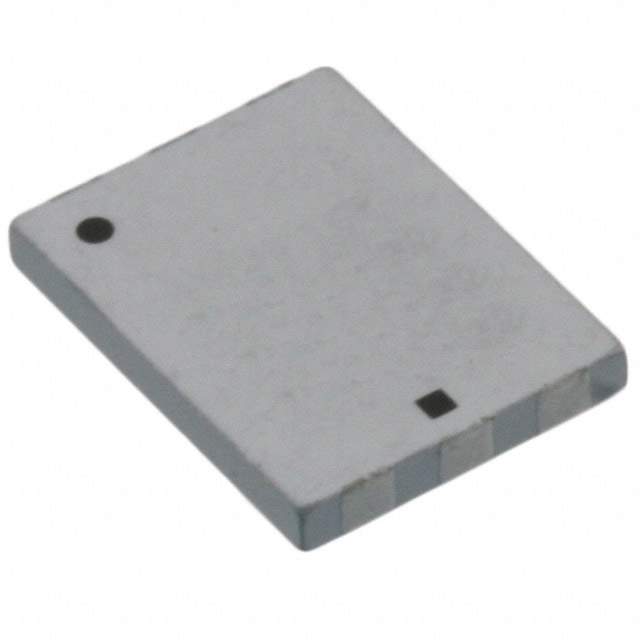

AH086M555003-T Real Image
Same model may have multiple batches, images only for reference.

AH086M555003-T

Part No AH086M555003-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description RF ANT 3.5GHZ/5.6GHZ CHIP SLD / 3.5GHz, 5.6GHz WiMax™ Chip RF Antenna 3.1GHz ~ 8GHz 2.6dBi, 0.7dBi Solder Surface Mount
Datasheet
AH086M555003-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taiyo Yuden
Package Tape & Reel
RF Family/Standard WiFi
Frequency Group UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
Frequency (Center/Band) 3.5GHz, 5.6GHz
Frequency Range 3.1GHz ~ 8GHz
Antenna Type Chip
Number of Bands 1
VSWR 2.5
Gain 2.6dBi, 0.7dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Applications WiMax™
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names PG AH 086M555003-T,AH086M555003T,587-2204-6,587-2204-2,587-2204-1
Standard Package 1,000
Win Source Part Number 983773-AH086M555003-T
Ultra Librarian 3D Model Ultra Librarian AH086M555003-T CAD Model

Description

The Taiyo Yuden 983773-AH086M555003-T is a high-quality RF antenna that is designed to offer exceptional performance.

  • Supply and Demand: Limited
  • Applications: Wi-Fi
  • Design: Chip
