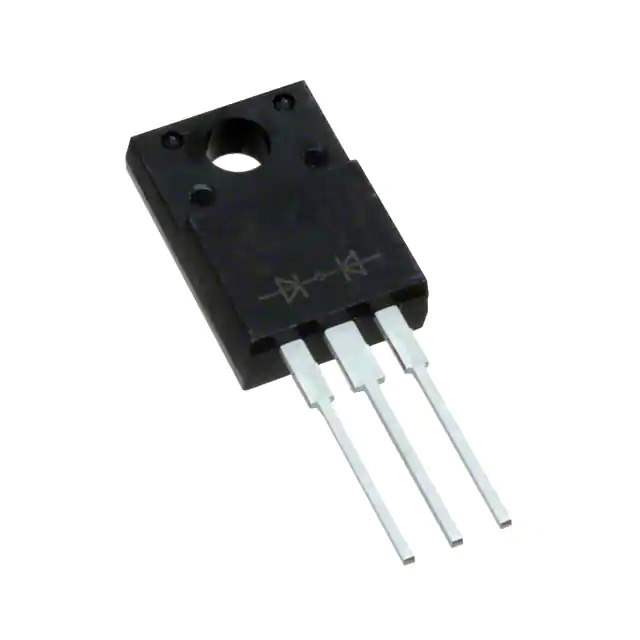

TSF20U60C Real Image
Same model may have multiple batches, images only for reference.

TSF20U60C

Part No TSF20U60C
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 60V ITO220AB
Datasheet
TSF20U60C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 540 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 60 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number TSF20
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692012-TSF20U60C
Ultra Librarian 3D Model Ultra Librarian TSF20U60C CAD Model

Description

The 692012-TSF20U60C is a Schottky diode array designed for rectification applications.

  • Configuration: Two diodes connected in a common cathode configuration
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 10A
  • Forward Voltage Drop: 540mV @ 10A
  • Recovery Time: Less than 500ns
  • Package: TO-220-3 Full Pack package with an isolated tab
  • Manufacturer: Taiwan Semiconductor
  • Product Status: Active
  • Applications: Power supplies, motor control circuits, and other electronic systems
