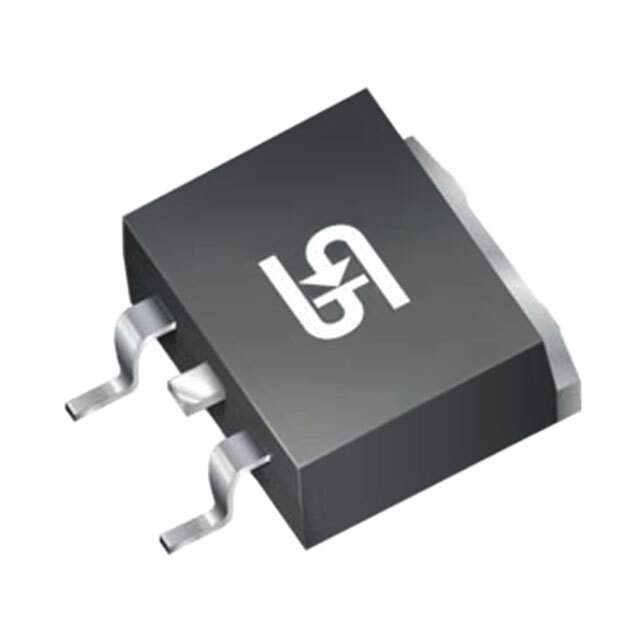

The TSD10L200CW MNG is a Schottky barrier rectifier manufactured by Taiwan Semiconductor. This device is designed for high-efficiency rectification in a variety of power supply and circuit applications. Its key characteristics include a low forward voltage drop and fast switching speed, which contribute to improved efficiency and reduced power loss.

Applications

• Switching power supplies
• Free-wheeling diodes
• Polarity protection applications
• DC-DC converters
• High-frequency inverters

Features

• Low forward voltage drop
• High surge current capability
• Fast switching speed
• High reliability
• RoHS compliant

Benefits

• Improved Efficiency: The low forward voltage drop minimizes power loss and improves overall circuit efficiency.
• Robust Protection: High surge current capability provides protection against transient voltage spikes.
• Fast Response: The fast switching speed enables efficient operation in high-frequency applications.
• Increased Reliability: Designed for reliable performance in demanding environments.

Additional Details

The TSD10L200CW MNG is typically used in applications where minimizing power dissipation and maximizing efficiency are critical. Its Schottky barrier construction provides a significant advantage over traditional silicon diodes in terms of forward voltage drop and switching speed. This rectifier is often found in portable devices, computer power supplies, and other energy-conscious applications. The “CW” designation typically indicates a common cathode configuration for dual diodes in a single package, allowing for efficient rectification in bridge circuits or other similar arrangements.

Refer to the official Taiwan Semiconductor datasheet for detailed electrical characteristics, thermal performance, and package dimensions. This information is essential for ensuring proper device selection and optimal performance in your specific application.
