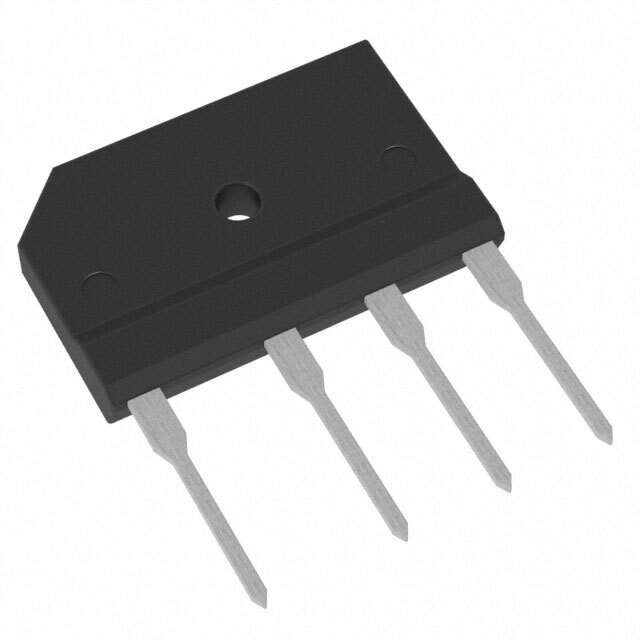

Same model may have multiple batches, images only for reference.

TS50P07G

Name: TS50P07G
Brand: Taiwan Semiconductor
SKU: 990449
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TS50P07G
Manufacturer	Taiwan Semiconductor
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 1KV 50A TS-6P / Bridge Rectifier Single Phase Standard 1 kV Through Hole TS-6P
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr	Taiwan Semiconductor Corporation
Package	Tube
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	50 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr	10 µA @ 1000 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, TS-6P
Supplier Device Package	TS-6P
Base Product Number	TS50P07
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	1801-TS50P07G,TS50P07G D2G,1801-TS50P07GD2G,TS50P07GD2G-ND,TS50P07G D2G-ND,TS50P07GD2G
Standard Package	15
Win Source Part Number	990449-TS50P07G
Ultra Librarian 3D Model	Ultra Librarian TS50P07G CAD Model

Description

The TS50P07G is a diode bridge rectifier manufactured by Taiwan Semiconductor Corporation.

Type: Single-Phase Standard
Forward Voltage: 1.1 V @ 1.5 A
Peak Reverse Voltage: 1 kV
Current Leakage: 10 µA @ 1000 V
Current Rating: 50 A
Temperature Range: -55°C to 150°C (TJ)
Mounting: Through Hole
Package: 4-SIP, TS-6P
Standard Package: 15 units
