Same model may have multiple batches, images only for reference.

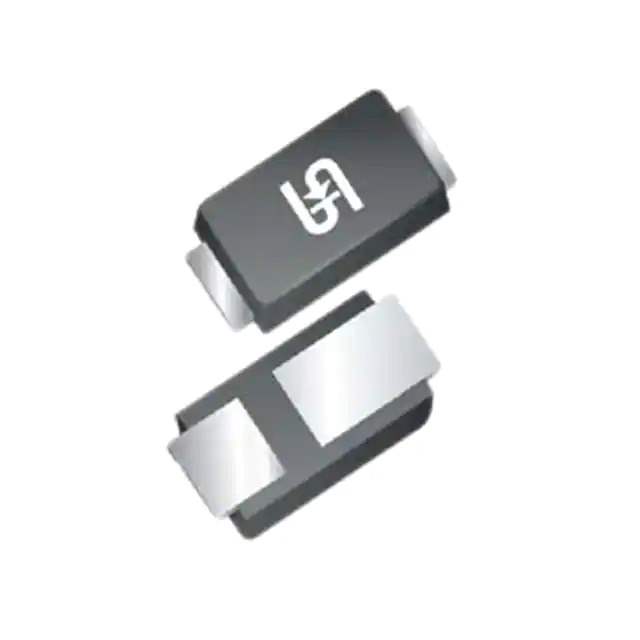

SS16M Real Image
Same model may have multiple batches, images only for reference.

SS16M

Part No SS16M
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A MICRO SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 680 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 60 V
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, Flat Lead
Supplier Device Package Micro SMA
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS16
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676261-SS16M
Ultra Librarian 3D Model Ultra Librarian SS16M CAD Model

Description

The 676261-SS16M is a single diode rectifier from Taiwan Semiconductor.

  • Recovery Time: Fast, less than 500ns
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 680mV @ 1A
  • Mounting Type: Surface Mountable
  • Package: 2-SMD, flat lead
  • Supplier Device Package: Micro SMA
  • Standard Package: 12,000 pieces
  • Operating Temperature Range: -55°C to 150°C
  • Technology: Schottky
  • Product Status: Active
