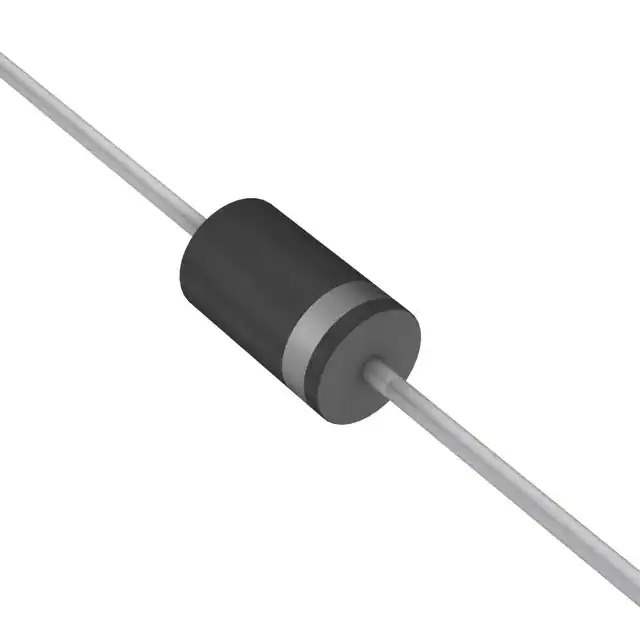

SR506 Real Image
Same model may have multiple batches, images only for reference.

SR506

Part No SR506
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 5A DO201AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SR506
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675941-SR506
Ultra Librarian 3D Model Ultra Librarian SR506 CAD Model

Description

The 675941-SR506 is a fast recovery single diode rectifier in a through-hole DO-201AD package.

  • Maximum DC Reverse Voltage: 60V
  • Average Rectified Current: 5A
  • Forward Voltage: 700mV @ 5A
  • Reverse Leakage Current: 500μA @ 60V
  • Operating Temperature Range: -55°C to 150°C
  • Package: Tape and Reel
  • Standard Package Quantity: 1,250 pcs
  • Manufacturer: Taiwan Semiconductor
