Same model may have multiple batches, images only for reference.

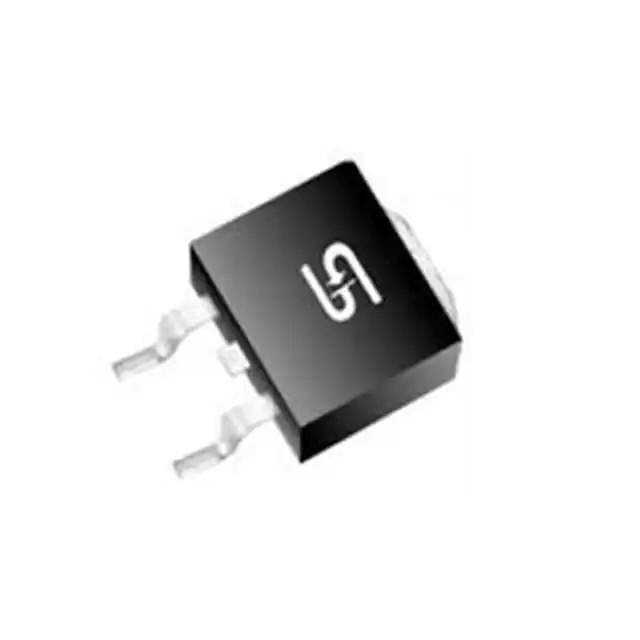

SFS1605G Real Image
Same model may have multiple batches, images only for reference.

SFS1605G

Part No SFS1605G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 16A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFS1605
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 665510-SFS1605G
Ultra Librarian 3D Model Ultra Librarian SFS1605G CAD Model

Description

The SFS1605G is a single diode rectifier designed for general-purpose applications, manufactured by Taiwan Semiconductor.

  • Package: surface mount TO-263AB
  • Maximum Reverse Voltage: 300V
  • Average Rectified Current: 16A
  • Forward Voltage Drop: 1.3V @ a forward current of 8A
  • Recovery Time: fast recovery time of 35ns
  • Reverse Leakage Current: low reverse leakage current of 10μA @ the maximum reverse voltage
  • Capacitance: 60pF @ 4V and 1MHz
  • Status: active product
  • Packaging: tape and reel
