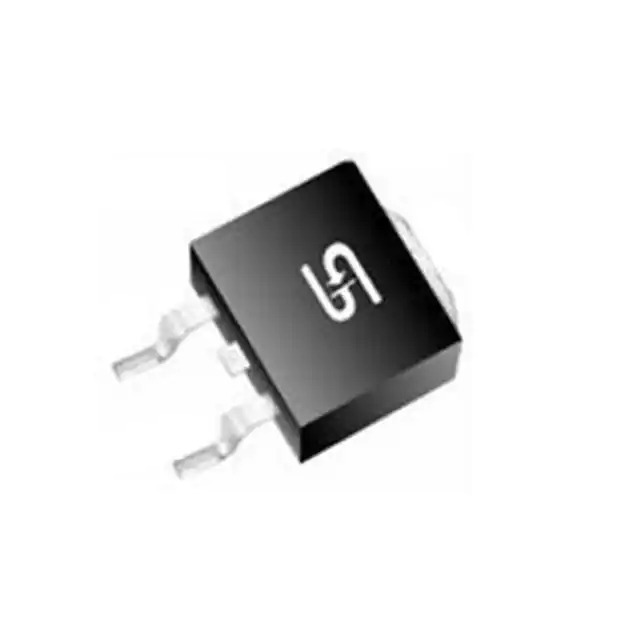

Same model may have multiple batches, images only for reference.
SFAS803G MNG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SFAS803G MNG

Part No SFAS803G MNG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 150V 8A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 150 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D²PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAS803
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366856-SFAS803G MNG
Ultra Librarian 3D Model Ultra Librarian SFAS803G MNG CAD Model

Description

The SFAS803G MNG is a single rectifier diode from Taiwan Semiconductor Corporation.

  • Series: SFAS803
  • Product Category: Discrete Semiconductor Products
  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Mounting Type: Surface Mount
  • Maximum Reverse Voltage: 150V
  • Average Rectified Current: 8A
  • Forward Voltage: 950mV @ 8A
  • Reverse Leakage Current: 10μA @ 150V
