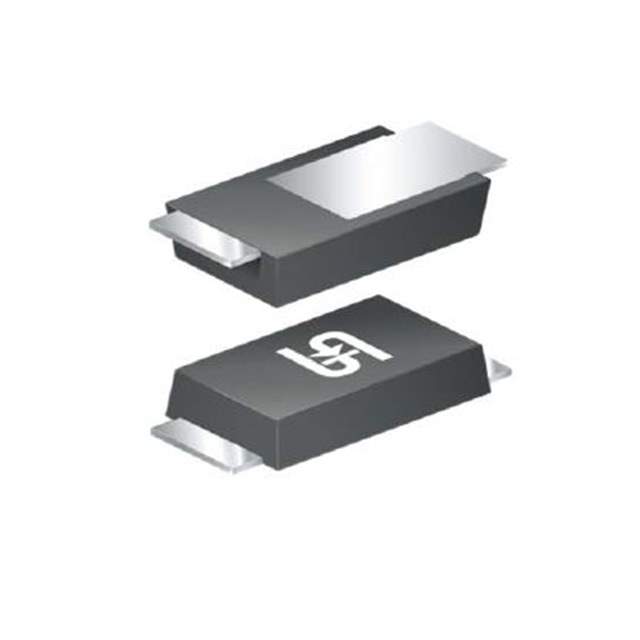

S1MLSHRVG Real Image
Same model may have multiple batches, images only for reference.

S1MLSHRVG

Part No S1MLSHRVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1.2A SOD123HE / Diode Standard 1000 V 1.2A Surface Mount SOD-123HE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1.2A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1.2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Mounting SMD (SMT)
Package / Case SOD-123H
Supplier Device Package SOD-123HE
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number S1ML
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names S1MLSHRVGCT,S1MLSHRVGDKR,S1MLSHRVGTR
Standard Package 3,000
Win Source Part Number 1089764-S1MLSHRVG
Ultra Librarian 3D Model Ultra Librarian S1MLSHRVG CAD Model

Description

The Taiwan Semiconductor S1MLSHRVG is a fast recovery diode with a current rating of 1.2A and a voltage rating of 1000V.

  • Current Rating: 1.2A
  • Voltage Rating: 1000V
  • Forward Voltage: 1.3V @ 1.2A
  • Reverse Leakage Current: 5μA @ 1000V
  • Package: SOD-123H
  • Mounting: Surface mountable
  • Package Quantity: 3000 (tape and reel)
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
