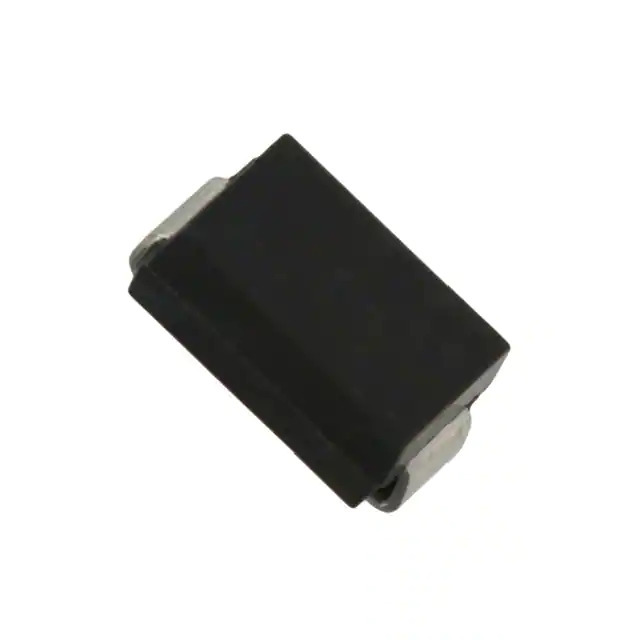

HS3JB Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

HS3JB

Part No HS3JB
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 3A DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F 50pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number HS3J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368168-HS3JB
Ultra Librarian 3D Model Ultra Librarian HS3JB CAD Model

Description

The HS3JB is a standard rectifier diode from Taiwan Semiconductor Corporation.

  • Series: HS3J
  • Application: Rectification applications
  • Maximum Reverse Voltage (Vr): 600 V
  • Average Rectified Current (Io): 3A
  • Forward Voltage (Vf): 1.7V @ 3A
  • Fast Recovery Time: Less than 500ns
  • Reverse Recovery Time (trr): 75 ns
  • Reverse Leakage Current: 10 μA @ 600V
  • Capacitance: 50pF @ 4V and 1MHz
  • Package: DO-214AA, SMB
  • Mounting Type: Surface mount
