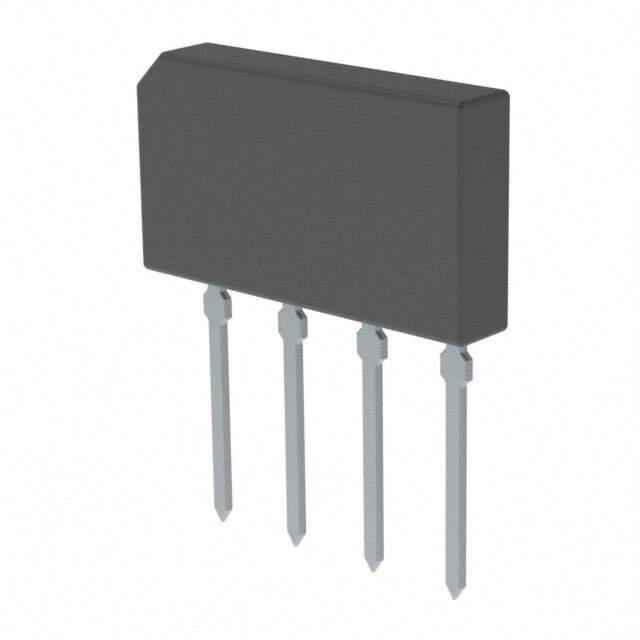

The GBL10 D2 is a single-phase glass passivated bridge rectifier manufactured by Taiwan Semiconductor. This rectifier is designed to convert alternating current (AC) to direct current (DC) efficiently and reliably in various electronic applications.

Applications

• Power Supplies: Used in power supplies to convert AC voltage from the mains to DC voltage for electronic circuits.
• Adapters: Commonly found in AC/DC adapters for charging various devices.
• LED Lighting: Utilized in LED lighting systems to provide a stable DC voltage for the LEDs.
• Household Appliances: Incorporated in appliances such as washing machines, refrigerators, and microwave ovens to power electronic control circuits.
• Industrial Equipment: Used in industrial control systems and machinery to provide DC power for various components.

Features

• High Surge Current Capability: Withstands high surge currents, ensuring reliable operation during power fluctuations.
• Glass Passivated Diode Construction: Offers improved reliability and stability.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Temperature Soldering Guaranteed: Ensures robust soldering during assembly.
• RoHS Compliant: Complies with Restriction of Hazardous Substances (RoHS) directive.

Benefits

• Efficient AC to DC Conversion: Provides efficient conversion of AC to DC voltage, minimizing power loss.
• Reliable Performance: Glass passivated diode construction ensures reliable operation in various environments.
• Compact Size: Space-saving design for integration into compact electronic devices.
• Easy to Use: Simple design and construction make it easy to integrate into existing circuits.
• Long Lifespan: Designed for long-term reliable operation.

Additional Details

The GBL10 D2 features a repetitive peak reverse voltage of 1000V and a maximum average forward rectified current of 1.5A. The maximum forward voltage drop is typically around 1.0V. The device is typically packaged in a GBL package and operates over a temperature range suitable for industrial applications (-55°C to +150°C).

The GBL series from Taiwan Semiconductor is known for its robust performance and reliability in demanding power conversion applications. Proper heat sinking may be required depending on the operating conditions and load current.
