Same model may have multiple batches, images only for reference.

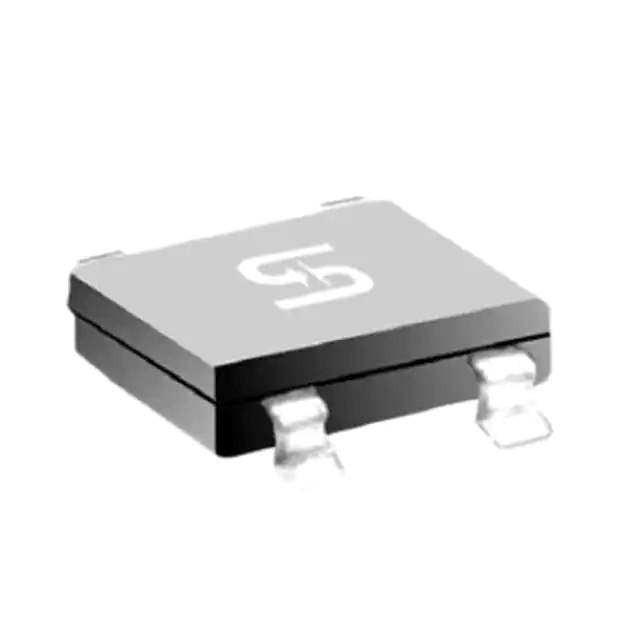

DBLS209G Real Image
Same model may have multiple batches, images only for reference.

DBLS209G

Part No DBLS209G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1.4KV 2A DBLS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.4 kV
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 2 A
Current - Reverse Leakage @ Vr 2 µA @ 1400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DBLS
Base Product Number DBLS209
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584153-DBLS209G
Ultra Librarian 3D Model Ultra Librarian DBLS209G CAD Model

Description

The DBLS209G is a single-phase bridge rectifier designed for standard rectification applications.

  • Current Rating: 2 A
  • Voltage Rating: 1.4 kV
  • Forward Voltage: 1.3 V @ 2 A
  • Reverse Leakage Current: 2 μA @ 1400 V
  • Package: 4-SMD, gull wing
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 150°C
  • Applications: Power supply circuits and other electronic systems
