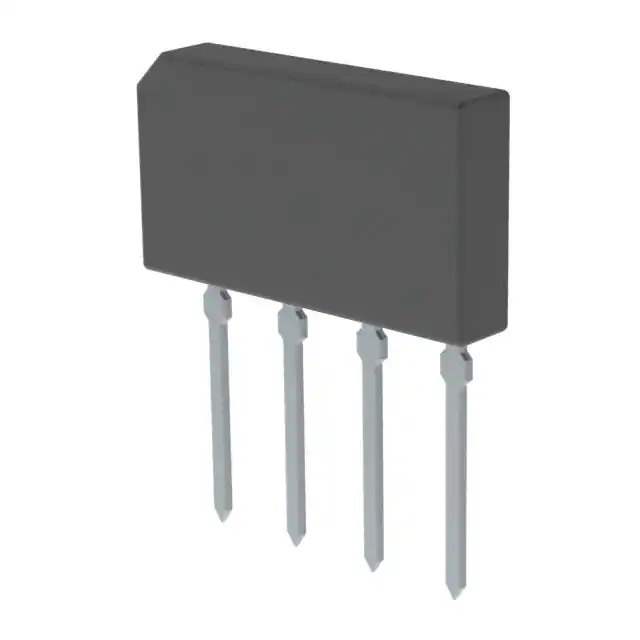

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package GBL
Base Product Number D2SB80
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 583461-D2SB80
Ultra Librarian 3D Model Ultra Librarian D2SB80 CAD Model

Description

The D2SB80 is a bridge rectifier designed for single-phase applications.

  • Maximum Peak Reverse Voltage: 800V
  • Average Rectified Current: 2A
  • Forward Voltage: 1.1V @ 15A
  • Reverse Leakage Current: 10μA @ 800V
  • Mounting Type: through-hole mounting
  • Package: 4-SIP, GBL package
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Status: currently active
