Same model may have multiple batches, images only for reference.

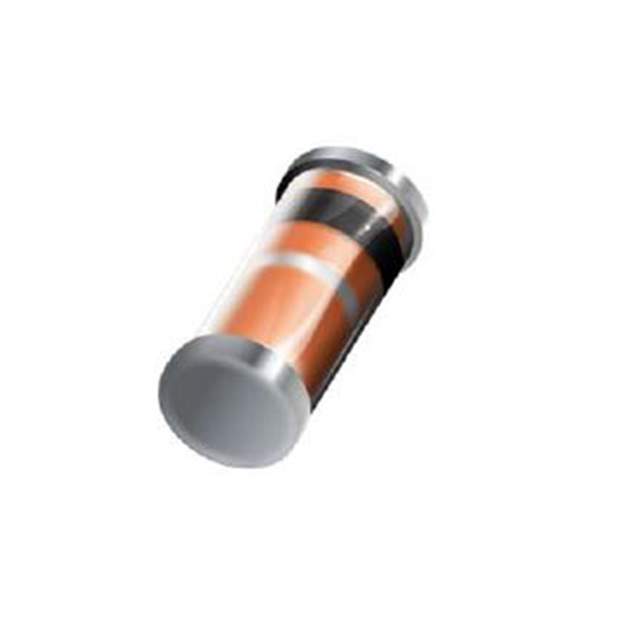

BZV55C18 L1G Real Image
Same model may have multiple batches, images only for reference.

BZV55C18 L1G

Part No BZV55C18 L1G
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 18V 500MW MINI MELF  /  Zener Diode 18 V 500 mW ±5% Surface Mount Mini MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel (TR)
Voltage - Zener (Nom) (Vz) 18 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 50 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 13 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package Mini MELF
Base Product Number BZV55
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names BZV55C18 L1G-ND,BZV55C18L1G
Standard Package 2,500
Win Source Part Number 1147072-BZV55C18 L1G
Ultra Librarian 3D Model Ultra Librarian BZV55C18 L1G CAD Model

Description

The BZV55C18 L1G is a single zener diode from Taiwan Semiconductor Corporation.

  • Voltage Rating: 18V
  • Tolerance: ±5%
  • Maximum Power Rating: 500mW
  • Forward Voltage: 1V @ 10mA
  • Reverse Leakage Current: 100nA @ 13V
  • Impedance: 50 Ohms
  • Package: DO-213AC, MINI-MELF, SOD-80
  • Operating Temperature Range: -65°C to 175°C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
