Same model may have multiple batches, images only for reference.

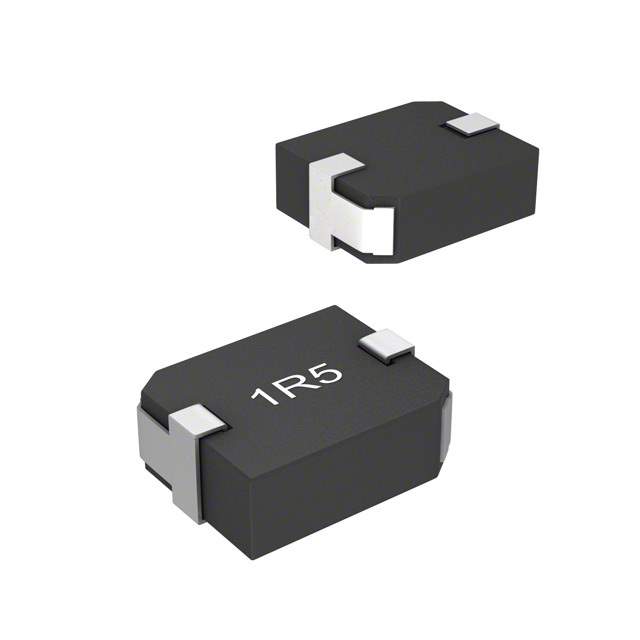

SRP7030-R22M Real Image
Same model may have multiple batches, images only for reference.

SRP7030-R22M

Part No SRP7030-R22M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded Power Inductors
Datasheet
SRP7030-R22M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP7030
Packaging Reel - TR
Type Wirewound
Material - Core Iron
Inductance 220nH
Tolerance ±20%
Current Rating 23A
Current - Saturation 36A
Shielding Shielded
DC Resistance (DCR) 2.8 mOhm Max
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.126" (3.20mm)
Win Source Part Number 1258822-SRP7030-R22M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRP7030
Introduction Date January 21, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian SRP7030-R22M CAD Model

Description

The Bourns Inc. SRP7030-R22M is a shielded wirewound inductor component.

  • Inductance: 220nH
  • Current Rating: 23A
  • Core Material: Iron
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 150°C
  • Package Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Commonly Used in: Inductors, coils, and chokes
