Same model may have multiple batches, images only for reference.

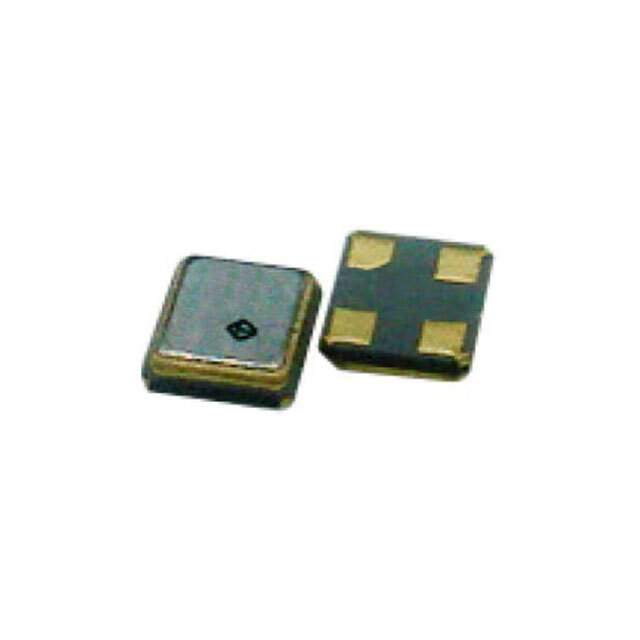

XZCBELNANF-24.000000 Real Image
Same model may have multiple batches, images only for reference.

XZCBELNANF-24.000000

Part No XZCBELNANF-24.000000
Manufacturer Taitien
Catalog Crystals
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±10ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
XZCBELNANF-24.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Taitien
Series XZ
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.081" L x 0.065" W (2.05mm x 1.65mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000
Win Source Part Number 1122128-XZCBELNANF-24.000000
Ultra Librarian 3D Model Ultra Librarian XZCBELNANF-24.000000 CAD Model

Description

The XZCBELNANF-24.000000 is a MHz crystal from Taitien.

  • Series: XZ
  • Packaging: Tape and Reel
  • Frequency: 24MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Package: 4-SMD, no lead
  • Mounting Technology: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
