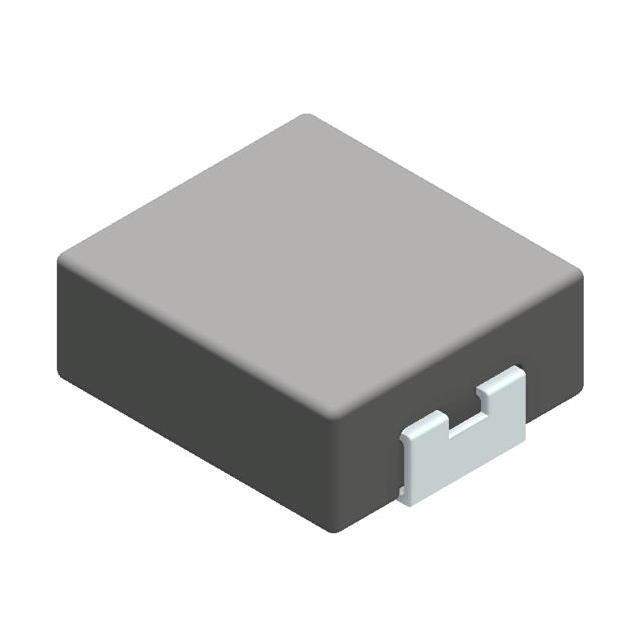

TMPC 0603H-R47MG-D Real Image1 TMPC 0603H-R47MG-D Real Image2
Same model may have multiple batches, images only for reference.
TMPC 0603H-R47MG-D Real Image1 TMPC 0603H-R47MG-D Real Image2
TMPC 0603H-R47MG-D Real Image1 TMPC 0603H-R47MG-D Real Image2
Same model may have multiple batches, images only for reference.

TMPC 0603H-R47MG-D

Part No TMPC 0603H-R47MG-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Fixed Inductors
Description 470 NH SHIELDED MOLDED INDUCTOR / 470 nH Unshielded Molded Inductor 17.5 A 4.2mOhm Max Nonstandard
Datasheet
TMPC 0603H-R47MG-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TAI-TECH Advanced Electronics
Series TMPC0603H
Package Tape & Reel
Type Molded
Material - Core Carbonyl Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 17.5 A
Current - Saturation (Isat) 26A
Shielding Unshielded
DC Resistance (DCR) 4.2mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 1,000 pcs
Win Source Part Number 1383676-TMPC 0603H-R47MG-D
Ultra Librarian 3D Model Ultra Librarian TMPC 0603H-R47MG-D CAD Model

Description

The TMPC 0603H-R47MG-D is a molded fixed inductor from TAI-TECH Advanced Electronics.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • Shielded: Unshielded
  • Size: 0.287" L x 0.260" W
  • Mounting Type: Surface Mountable
  • DC Resistance (DCR): 4.2mOhm maximum
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 17.5 A
  • Current Saturation (Isat): 26A
  • Package: Nonstandard
  • Package: Tape and Reel
