Same model may have multiple batches, images only for reference.

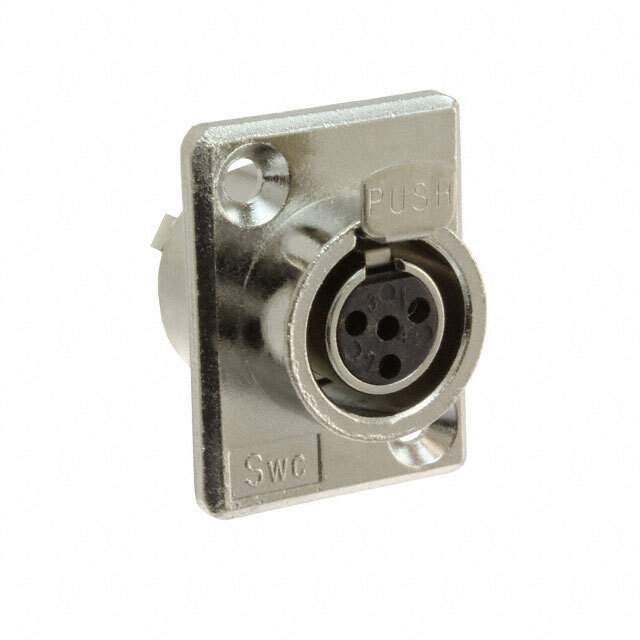

TY4F Real Image
Same model may have multiple batches, images only for reference.

TY4F

Part No TY4F
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN PLUG 4POS PNL MNT SKT MINI
Datasheet
TY4F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Active
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert Mini XLR
Mounting Panel Mount, Flange
Termination Solder Cup
Fastening Type Latch Lock
Orientation Keyed
Shell Material, Finish Zinc Die Cast, Nickel Plated
Contact Finish Silver
Voltage Rating 125VAC
Current Rating 5A
Temperature Range - Operating -55°C to 85°C
Win Source Part Number 1094764-TY4F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TY4F CAD Model

Description

The Switchcraft Inc. 1094764-TY4F is a 4-position female socket plug connector that comes with a silver contact finish and solder cup termination.

  • Positions: 4
  • Contact Finish: Silver
  • Termination: Solder cup
  • Voltage Rating: 125VAC
  • Current Rating: 5A
  • Locking Type: Latch lock
  • Mounting: Panel-mounted with a flange
  • Shell Size: Mini XLR
  • Insert Material: Zinc die-cast and nickel-plated
  • Temperature Range: -55℃ to 85℃
  • Market Status: Popular
  • Supply and Demand Status: Balanced
