SL405FX Real Image
Same model may have multiple batches, images only for reference.

SL405FX

Part No SL405FX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL40
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 5
Shell Size - Insert SL-5F
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Fastening Type Threaded
Orientation D
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Cable Opening 0.280" (7.10mm)
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Base Product Number SL405F
Other Names SC1896,SL405FX
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294176-SL405FX
Ultra Librarian 3D Model Ultra Librarian SL405FX CAD Model

Description

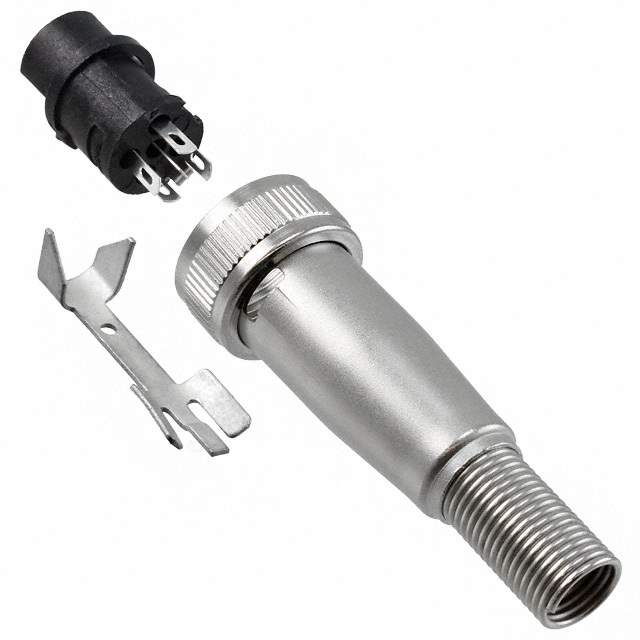

The Slim-Line™ SL40 plug female connector features five positions and a silver color.

  • Features: cable clamp, coupling nut, and strain relief feature
  • Termination: solder eyelet(s) termination
  • Fastening Type: threaded fastening type
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Applications: ideal for audio, industrial, marine, and medical applications
  • Shell Size: SL-5F
  • Cable Opening: 0.280 inches (7.10mm)
  • Mounting Type: free hanging (in-line) mounting type
  • ECCN: EAR99 compliant
