Same model may have multiple batches, images only for reference.

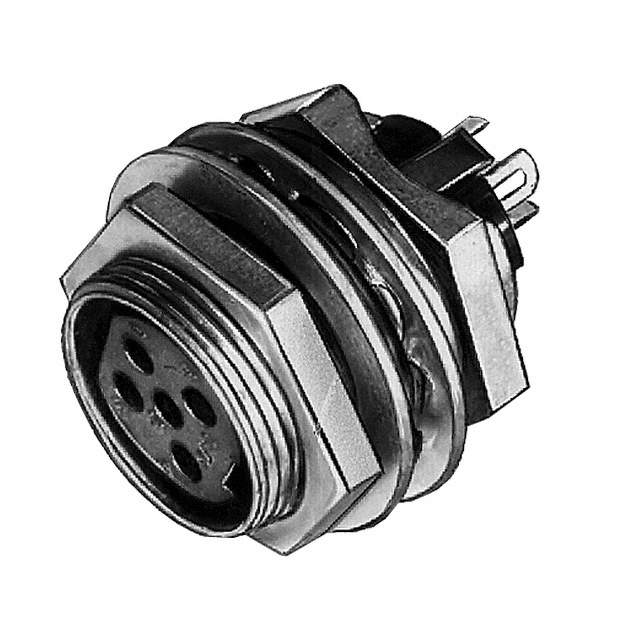

SL175F Real Image
Same model may have multiple batches, images only for reference.

SL175F

Part No SL175F
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL17
Package Bulk
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert SL-5F
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Eyelet(s)
Fastening Type Threaded
Orientation D
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 5A
Contact Material Copper Alloy
Insert Material Thermoplastic
Applications Audio, Industrial, Marine, Medical
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294188-SL175F
Ultra Librarian 3D Model Ultra Librarian SL175F CAD Model

Description

This connector by Switchcraft Inc. is a part of the Slim-Line SL17 series and has 5 positions.

  • Positions: 5
  • Connector Type: Receptacle with Female Sockets
  • Termination: Solder Eyelet
  • Fastening Type: Threaded
  • Mounting Feature: Bulkhead - Front Side Nut
  • Shell Size Insert: SL-5F
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Thermoplastic
  • Current Rating: 5A
  • ECCN: EAR99
  • Temperature Range for Operating: Not Specified
  • Status: Obsolete
  • RoHS: Non-Compliant
