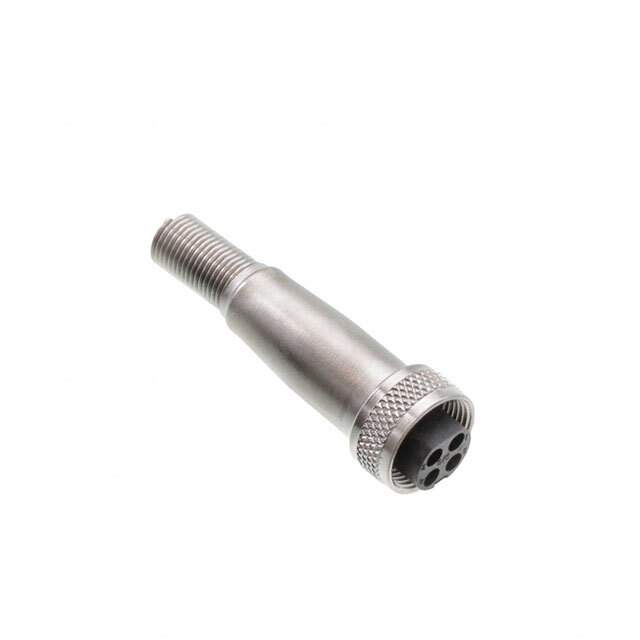

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL40
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert SL-4F
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Fastening Type Threaded
Orientation C
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Cable Opening 0.280" (7.10mm)
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Base Product Number SL404F
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names SL404FX-ND,SC2554
Standard Package 100
Win Source Part Number 1232284-SL404FX
Ultra Librarian 3D Model Ultra Librarian SL404FX CAD Model

Description

The Slim-Line® SL40 series is a shielded circular connector that has a number of positions of 4.

  • Series: Slim-Line® SL40
  • Positions: 4
  • Win Source Part Number: 1232284-SL404FX
  • Applications: Audio, Industrial, Marine, and Medical
  • Package: Bulk
  • Standard Package: 100
  • Current Rating: 5A
  • Shielded: Yes
  • Material: Copper Alloy
  • Shell Finish: Nickel
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4020
