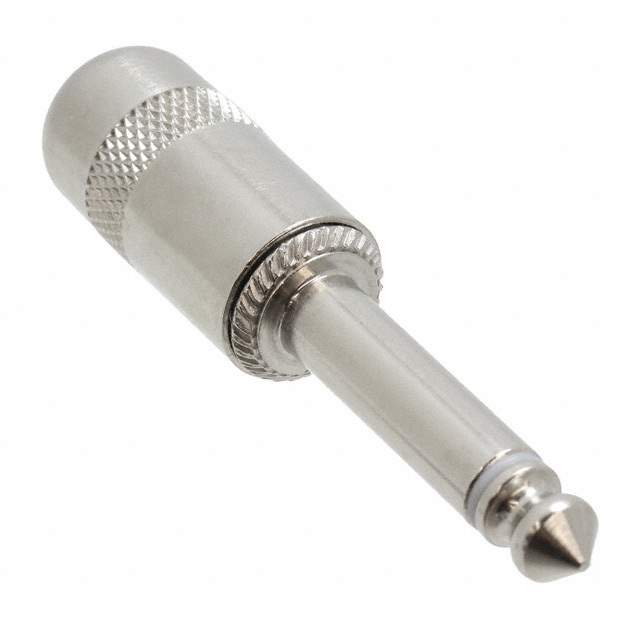

380 Real Image
Same model may have multiple batches, images only for reference.

380

Part No 380
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN PLUG MONO 6.35MM 2COND
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Series Lug®-Plug
Package Bulk
Product Status Active
Connector Type Phone Plug
Gender Male
Signal Lines Mono
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Shielded
Mating Length/Depth 1.188" (30.20mm)
Contact Material - Plating Nickel
Body Material Copper Alloy
Body Color Silver
Includes 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Housing Material Plastic
Contact Material Copper Alloy
Cable Opening 0.297" (7.54mm)
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1135176-380
Ultra Librarian 3D Model Ultra Librarian 380 CAD Model

Description

The Lug®-Plug Phone Plug is a male connector designed for audio applications.

  • Termination: Solder eyelet
  • Material: Copper alloy
  • Shielded: Yes
  • Housing Material: Plastic
  • Standard Package: 100 pieces
  • Industry Recognized Mating Diameter: 6.35mm (0.250", 1/4")
  • Actual Diameter: 0.250" (6.35mm)
  • Mating Length/Depth: 1.188" (30.20mm)
  • Cable Opening: 0.297" (7.54mm)
  • Signal Lines: Mono
  • Win Source Part Number: 1135176-380
