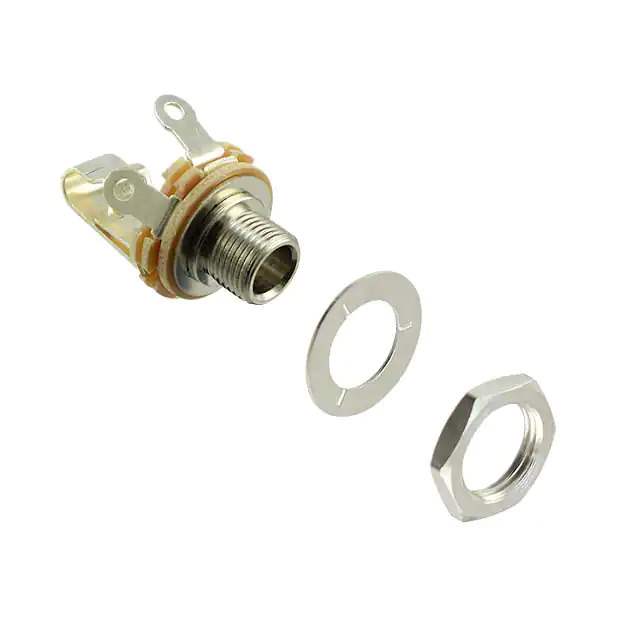

12A Real Image
Same model may have multiple batches, images only for reference.

12A

Part No 12A
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 6.35MM PNL MNT
Datasheet
12A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Series LITTEL-JAX®
Package Bulk
Product Status Active
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.253" (6.43mm)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch
Mounting Type Panel Mount, Through Hole
Termination Solder Eyelet(s)
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Tin
Body Material Brass
Body Color Silver
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material Brass
Panel Hole Size 0.375" (9.53mm)
Thread Size 3/8"-32
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 853914-12A
Ultra Librarian 3D Model Ultra Librarian 12A CAD Model

Description

The LITTEL-JAX® 853914-12A is a female phone jack connector designed for audio applications.

  • Termination: Solder Eyelet
  • Includes: Mounting Hardware, Thread Lock
  • Material: Brass
  • Shielded: Unshielded
  • Conductors: 2
  • Contacts: 3
  • Signal Type: Mono
  • Panel Hole Size: 0.375" (9.53mm)
  • Mounting Type: Panel Mount
  • Series: LITTEL-JAX®
  • Manufacturer: Switchcraft Inc.
  • Package Includes: 1 Connector, 1 Nut, 1 Washer
