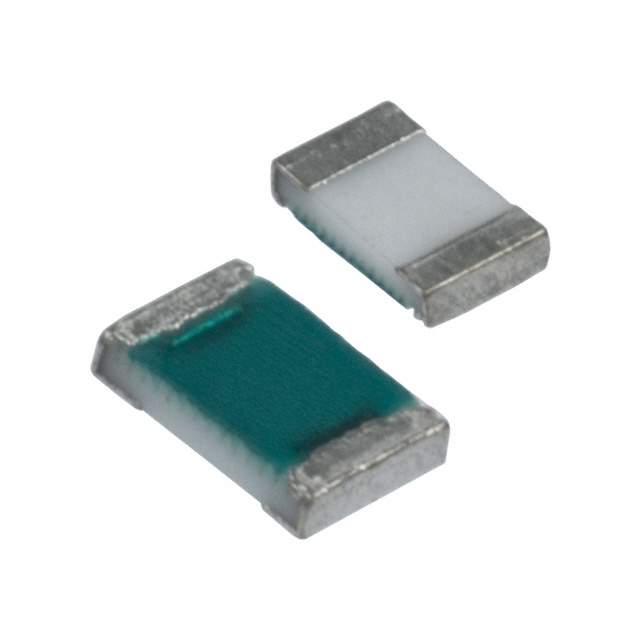

RL1220S-R24-F Real Image
Same model may have multiple batches, images only for reference.

RL1220S-R24-F

Part No RL1220S-R24-F
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES 0.24 OHM 1% 1/3W 0805 / 240 mOhms ±1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Current Sense Thin Film
Datasheet
RL1220S-R24-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Susumu
Series RL
Package Tape & Reel
Resistance 240 mOhms
Tolerance ±1%
Power (Watts) 0.333W, 1/3W
Composition Thin Film
Features Current Sense
Temperature Coefficient 0/ +200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RL12S.24FDKR,RL1220SR24F,RL12S.24FTR,RL12S.24FCT
Standard Package 5,000
Win Source Part Number 1095890-RL1220S-R24-F
Ultra Librarian 3D Model Ultra Librarian RL1220S-R24-F CAD Model

Description

The RL1220S-R24-F from Susumu is a 240 mOhms chip resistor that comes in 0805 (2012 Metric) package.

  • Power (Watts): 0.333W, 1/3W
  • Tolerance: ±1%
  • Temperature Coefficient: 0/ +200ppm/°C
  • Number of Terminations: 2
  • Composition: Thin Film
  • Application: Resistors - Chip Resistor - Surface Mount
  • Temperature Range: -55°C ~ 125°C
