Same model may have multiple batches, images only for reference.

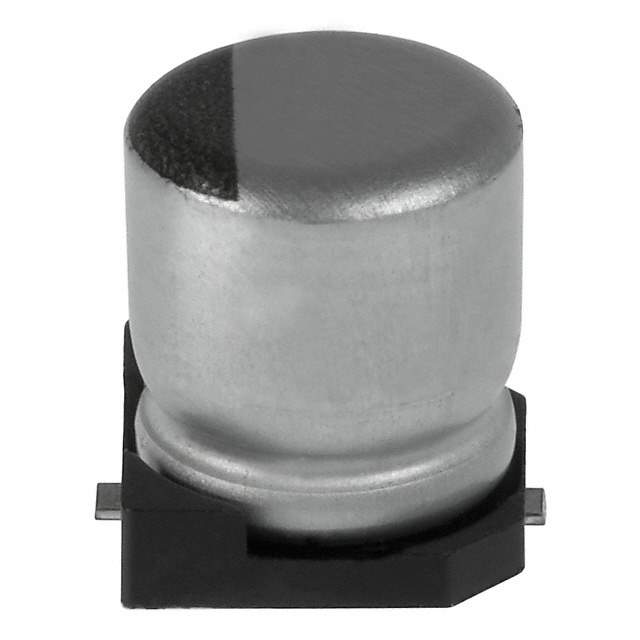

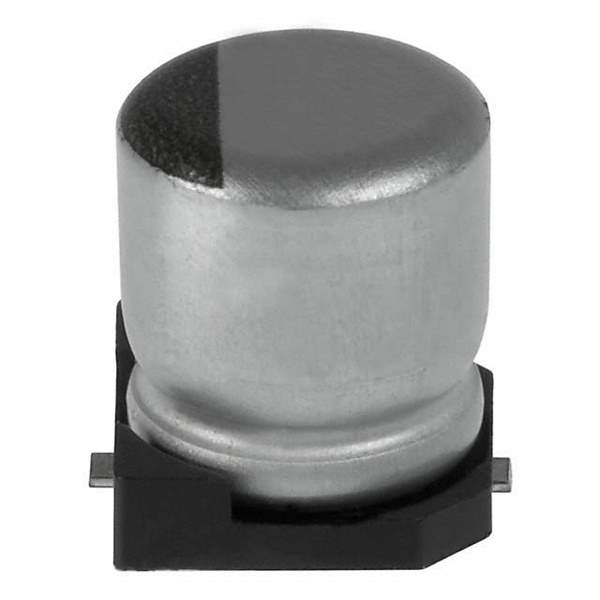

EMZF160ARA151MF90G Real Image
Same model may have multiple batches, images only for reference.

EMZF160ARA151MF90G

Part No EMZF160ARA151MF90G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 16V SMD / 150 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZF
Package Tape & Reel
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 92 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 1 Ohms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.354" (9.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339751-EMZF160ARA151MF90G
Ultra Librarian 3D Model Ultra Librarian EMZF160ARA151MF90G CAD Model

Description

The EMZF160ARA151MF90G is a surface mount aluminum electrolytic capacitor from United Chemi-Con.

  • Capacitance: 150 µF
  • Voltage Rating: 16 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Application: General Purpose
  • Lifetime: 10000 hours @ 105°C
  • ESR: Not Specified
  • Impedance: 1 Ohm
  • Package Type: Radial, Can - SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height Seated: 0.354" (9.00mm)
  • Diameter: 0.248" (6.30mm)
  • Packaging: Tape & Reel
  • Units per Package: 800
