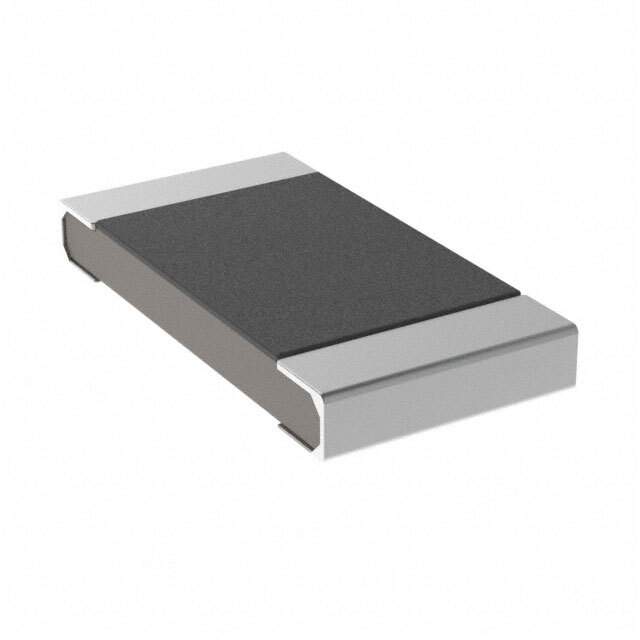

The RG3216N-2003-B-T5 is a precision thin film chip resistor manufactured by Susumu. It is part of the RG series, which is known for its high accuracy, stability, and reliability. These resistors are designed for surface mount technology (SMT) assembly and are commonly used in applications requiring tight tolerance and low temperature coefficient of resistance (TCR).

Applications

• Precision instrumentation
• Medical devices
• Test and measurement equipment
• Automotive electronics
• Industrial control systems

Features

• Resistance Value: 200 kOhms
• Power Rating: 0.1W (1/10W)
• Tolerance: ±0.1%
• Temperature Coefficient: ±25 ppm/°C
• Package: 1206 (3216 Metric)
• Termination: Surface Mount
• RoHS Compliant: Yes

Benefits

• High Accuracy: The 0.1% tolerance ensures extremely precise resistance values.
• Excellent Stability: The thin film construction provides stable performance over a wide temperature range and operating conditions.
• Low TCR: The low temperature coefficient minimizes resistance changes with temperature variations.
• SMT Compatibility: Designed for surface mount assembly, facilitating automated manufacturing.
• Reliable Performance: Susumu's manufacturing processes ensure consistent and dependable performance.

Additional Details

The RG3216N-2003-B-T5 resistor features a thin film resistive element deposited on a ceramic substrate. The thin film is precisely patterned and trimmed to achieve the specified resistance value and tolerance. This resistor provides a stable and accurate solution for current sensing, voltage division, and other precision resistive functions. The compact 1206 package makes it suitable for high-density circuit designs. The resistor's high stability and low TCR contribute to improved circuit performance and reliability. It's designed to withstand various environmental conditions, including temperature cycling and humidity. The RG3216N series is commonly used in applications requiring high accuracy and stability, such as precision amplifiers, analog-to-digital converters, and voltage references. The resistor's lead-free construction and RoHS compliance make it an environmentally friendly choice.
