The HMC516LC5TR from Analog Devices Inc. is a high-performance, wideband double-balanced mixer designed to meet the demanding requirements of RF and microwave communication systems. This advanced component is a part of Analog Devices' Hittite Microwave product line and is renowned for its exceptional signal processing capabilities.

Key Features

• Frequency Range: The HMC516LC5TR operates over a broad frequency range, making it suitable for a variety of applications, including point-to-point radios, satellite communications, and military systems.
• Conversion Loss: It boasts a low conversion loss, which ensures efficient signal translation and minimizes the degradation of signal quality.
• LO/RF Isolation: The mixer provides excellent isolation between the local oscillator (LO) and the radio frequency (RF) ports, which helps to maintain signal integrity and reduces interference.
• IP3 Performance: With a high third-order intercept point (IP3), the HMC516LC5TR delivers improved linearity, which is critical for maintaining signal clarity in complex modulation schemes.

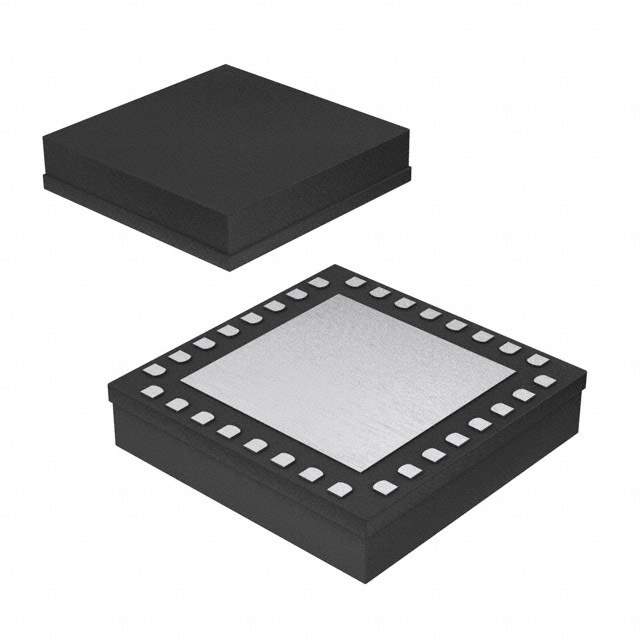

• Package: It comes in a compact 5x5 mm SMT package, which is ideal for space-constrained applications without compromising on performance.

Applications

The versatility of the HMC516LC5TR makes it a perfect fit for a wide range of applications. Its high linearity and broad frequency range are particularly beneficial for:

• Test and measurement equipment
• Wireless infrastructure
• Microwave radios and VSAT
• Military and space applications
• Electronic warfare and radar systems

Technical Specifications

Parameter Specification Frequency Range 6 GHz to 16 GHz Conversion Loss 9 dB typical LO/RF Isolation 25 dB typical IP3 +22 dBm typical Package 5x5 mm SMT

With its robust performance and compact form factor, the HMC516LC5TR from Analog Devices Inc. is an excellent choice for designers looking to integrate a high-quality mixer into their RF and microwave systems.
