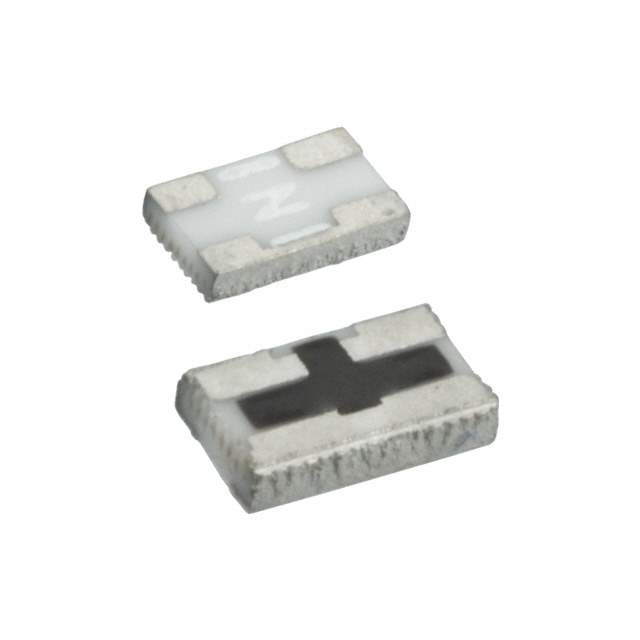

PXV1220S-2DBN3-T02 Real Image1 PXV1220S-2DBN3-T02 Real Image2
Same model may have multiple batches, images only for reference.
PXV1220S-2DBN3-T02 Real Image1 PXV1220S-2DBN3-T02 Real Image2
PXV1220S-2DBN3-T02 Real Image1 PXV1220S-2DBN3-T02 Real Image2
Same model may have multiple batches, images only for reference.

PXV1220S-2DBN3-T02

Part No PXV1220S-2DBN3-T02
Manufacturer Susumu
Catalog Attenuators
Description ATTENUATOR 2DB 50 OHM 0805 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Susumu
Status Active
Attenuation Value 2dB
Tolerance ±0.5dB
Frequency Range 0 to 3GHz
Power (Watts) 0.063W, 1/16W
Impedance 50 Ohm
Dimension 0805 (2012 Metric)
Win Source Part Number 129432-PXV1220S-2DBN3-T02
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PXV1220S-2DBN3-T02 CAD Model

Description

The Susumu electronic component is a high-quality product that is used in a variety of RF/IF and RFID applications. The supply and demand status is limited, so it may be difficult to find.

  • Tolerance: ±0.5dB
  • Impedance: 50 Ohm
  • Power Rating: 0.063W
  • Frequency Range: 0 to 3GHz
  • Attenuation Value: 2dB
