Same model may have multiple batches, images only for reference.

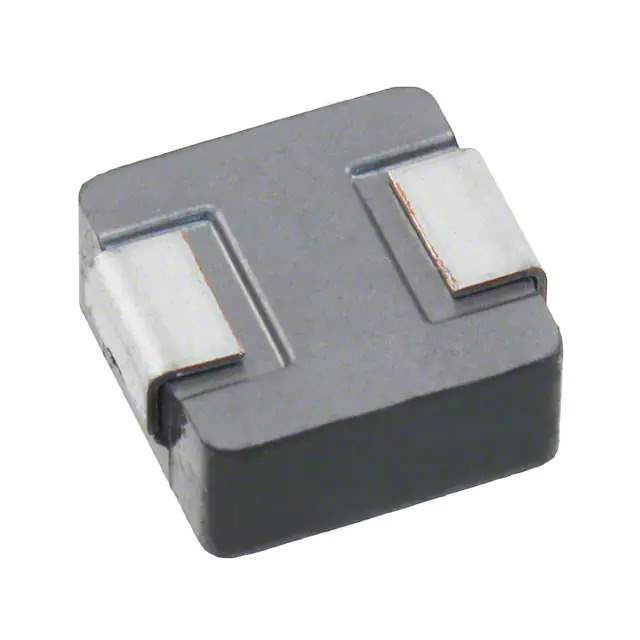

PCMC063T-1R2MN Real Image
Same model may have multiple batches, images only for reference.

PCMC063T-1R2MN

Part No PCMC063T-1R2MN
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 1.2UH 10A 12 MOHM SMD / 1.2 μH Unshielded Inductor 10 A 12mOhm Max Nonstandard
Datasheet
PCMC063T-1R2MN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Susumu
Series PCMC
Package Tape & Reel
Product Status Obsolete
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 20A
Shielding Unshielded
DC Resistance (DCR) 12mOhm Max
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888786-PCMC063T-1R2MN
Ultra Librarian 3D Model Ultra Librarian PCMC063T-1R2MN CAD Model

Description

The PCMC063T-1R2MN is a fixed inductor in the PCMC series. The PCMC063T-1R2MN is a fixed inductor in the PCMC series.

  • Series: PCMC
  • Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 1.2 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 12mOhm Max
  • Current Rating: 10 A
  • Mounting: Surface Mountable
  • Package: Nonstandard
  • Shielding: Unshielded
  • Product Status: Obsolete
  • Manufacturer: Susumu
