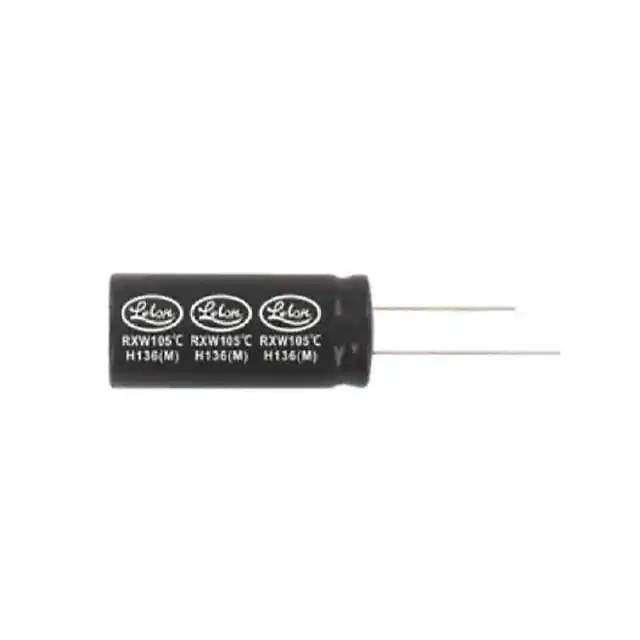

Same model may have multiple batches, images only for reference.

RXW100M1HBK-0511S

Name: RXW100M1HBK-0511S
Brand: Surge Components
SKU: 1341260
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RXW100M1HBK-0511S
Manufacturer	Surge Components
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet	RXW100M1HBK-0511S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	SURGE
Series	RXW
Package	BulkBag
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	4000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ High Frequency	120 mA @ 100 kHz
Impedance	1.4 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	Not Applicable
ECCN	3A001
HTSUS	8532.22.0020
Win Source Part Number	1341260-RXW100M1HBK-0511S
Ultra Librarian 3D Model	Ultra Librarian RXW100M1HBK-0511S CAD Model

Description

The RXW100M1HBK-0511S is an aluminum electrolytic capacitor that is widely used in electronic devices.

Series: RXW
Capacitance: 10 µF
Tolerance: ±20%
Rated Voltage: 50 V
Impedance: 1.4 Ohms
Polarization: Polarized
Ripple Current: 120 mA @ 100 kHz
Standard Package: 1,000
Packaging: Bulk Bag
Mounting Type: Through Hole
Package / Case: Radial, Can
Temperature Range: -55°C ~ 105°C
Lifetime: 4000 Hrs @ 105°C
Manufacturer Homepage: www.surgecomponents.com
