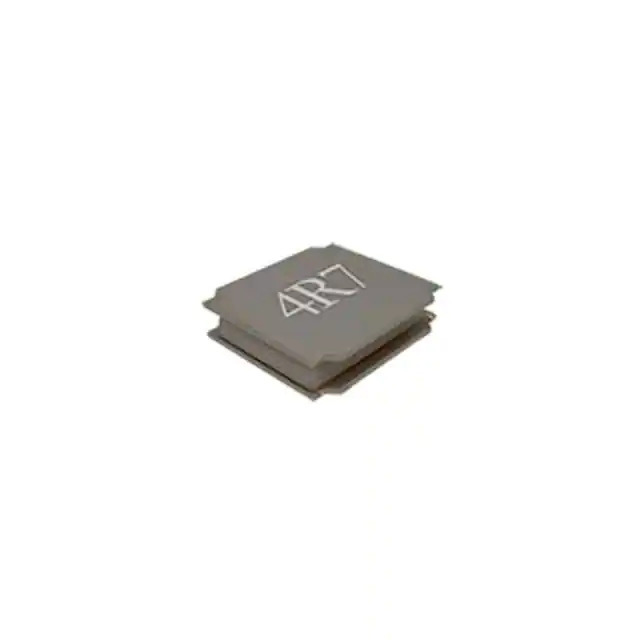

WPN4012HS4R7MT Sunlord
Same model may have multiple batches, images only for reference.

WPN4012HS4R7MT

Part No WPN4012HS4R7MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.05A 162MOHM SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series WPN
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.05 A
Current - Saturation (Isat) 2.6A
Shielding Shielded
DC Resistance (DCR) 162mOhm Max
Q @ Freq -
Frequency - Self Resonant 28MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370380-WPN4012HS4R7MT
Ultra Librarian 3D Model Ultra Librarian WPN4012HS4R7MT CAD Model

Description

The WPN4012HS4R7MT is a fixed inductor from Shenzhen Sunlord Electronics Co., Ltd.

  • Series: WPN
  • Inductor Type: Fixed
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
  • Shielding: Shielded
  • Inductance: 4.7 μH
  • Current Rating: 2.05 A
  • Operating Temperature: -40°C to 125°C
  • DC Resistance: 162mΩ Max
  • Frequency Self-Resonant: 28MHz
