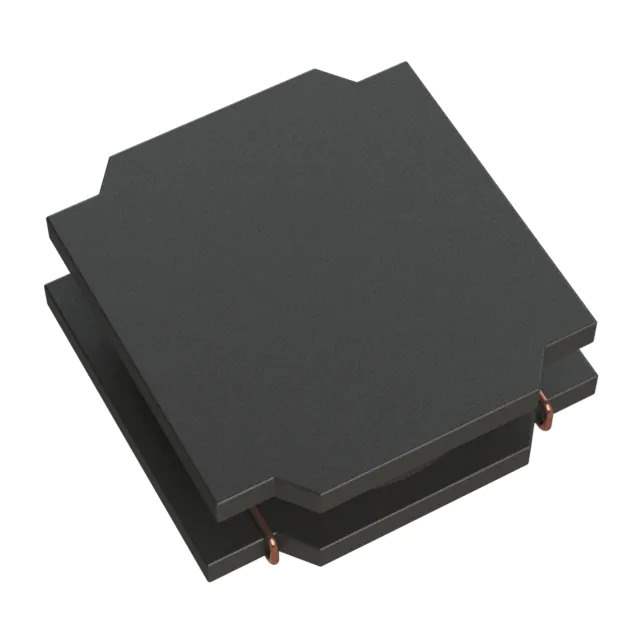

The SWPA8040S390MT is a drum core, wirewound inductor from Sunlord.

• Shielded: Yes
• Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
• Inductance: 39 µH
• Maximum Seated Height: 0.165" (4.20mm)
• Tolerance: ±20%
• DC Resistance (DCR): 139mOhm Max
• Designed for: Surface Mount Applications
• Package: Nonstandard
• Operating Temperature Range: -40°C to 125°C
• Current Rating: 1.7 A
• Saturation Current: 1.95A
• Suitable For: A variety of electronic applications
• Status: Active
• Standard Package: 1,000 pcs
• Material: Ferrite
• Self-Resonant Frequency: 7.8MHz
• Moisture Sensitivity Level (MSL): 1
• ECCN: EAR99
