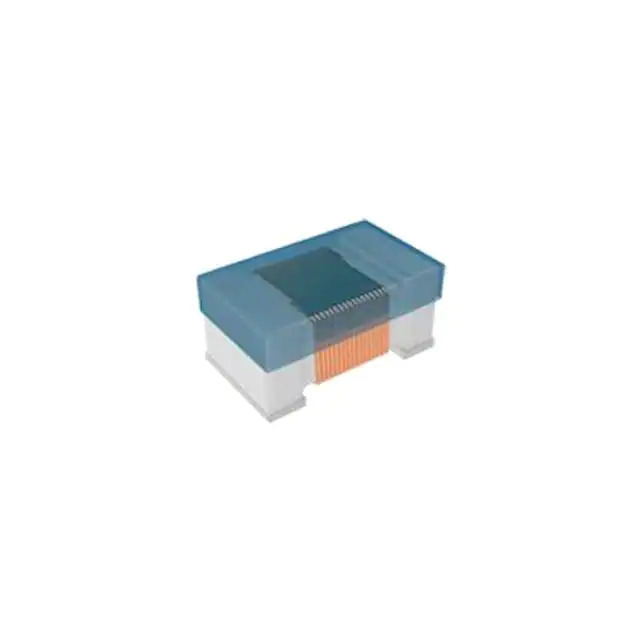

Same model may have multiple batches, images only for reference.
SDWL1608C75NJSTFM01 Sunlord
Same model may have multiple batches, images only for reference.

SDWL1608C75NJSTFM01

Part No SDWL1608C75NJSTFM01
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 75NH 270MA 560MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series SDWL-C-M
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 75 nH
Tolerance ±5%
Current Rating (Amps) 270 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 560mOhm Max
Q @ Freq 34 @ 150MHz
Frequency - Self Resonant 2.05GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.035" W (1.60mm x 0.90mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370151-SDWL1608C75NJSTFM01
Ultra Librarian 3D Model Ultra Librarian SDWL1608C75NJSTFM01 CAD Model

Description

The SDWL1608C75NJSTFM01 is a drum core, wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It is a fixed inductor with an inductance of 75 nH and a current rating of 270 mA.

  • Inductance: 75 nH
  • Current Rating: 270 mA
  • DC Resistance: 560 mOhm
  • Tolerance: ±5%
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mountable
  • Package: 0603 (1608 Metric)
  • Self-Resonant Frequency: 2.05 GHz
  • Size: 0.063" L x 0.035" W (1.60mm x 0.90mm)
  • Height: 0.039" (1.00mm)
