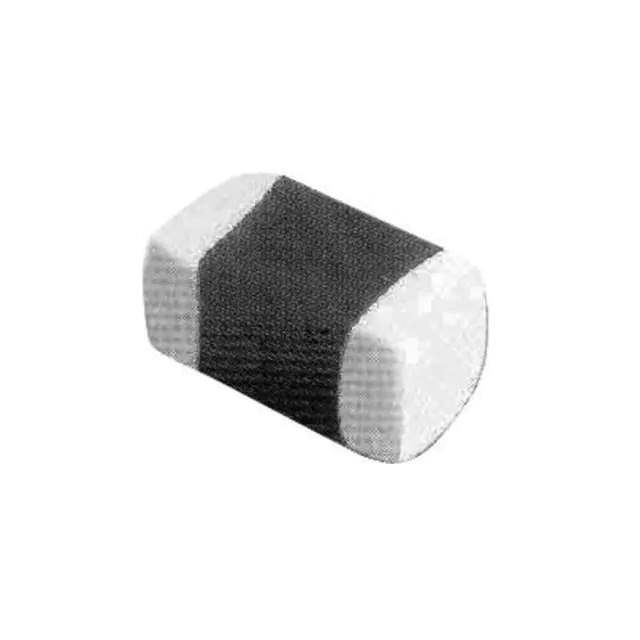

Same model may have multiple batches, images only for reference.

MPH201214S100MT

Name: MPH201214S100MT
Brand: Sunlord
SKU: 885778
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MPH201214S100MT
Manufacturer	Sunlord
Catalog	Fixed Inductors
Description	FIXED IND 10UH 1A 375 MOHM SMD / 10 μH Shielded Multilayer Inductor 1 A 375mOhm Max 0805 (2012 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sunlord
Series	MPH
Package	Tape & Reel
Product Status	Active
Type	Multilayer
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	1 A
Current - Saturation (Isat)	110mA
Shielding	Shielded
DC Resistance (DCR)	375mOhm Max
Frequency - Self Resonant	35MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.055" (1.40mm)
Standard Package	3,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	885778-MPH201214S100MT
Ultra Librarian 3D Model	Ultra Librarian MPH201214S100MT CAD Model

Alternative Products

Description

The MPH201214S100MT is a shielded, multilayer inductor from Sunlord.

Series: MPH
Mounting Type: Surface Mount
Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height: 0.055" (1.40mm)
Inductance: 10µH
Tolerance: ±20%
DC Resistance: 375mOhm maximum
Shielded: Yes
Packaging: Tape and reel
Current Rating: 1A
Saturation Current: 110mA
Operating Temperature: -55°C to 125°C
