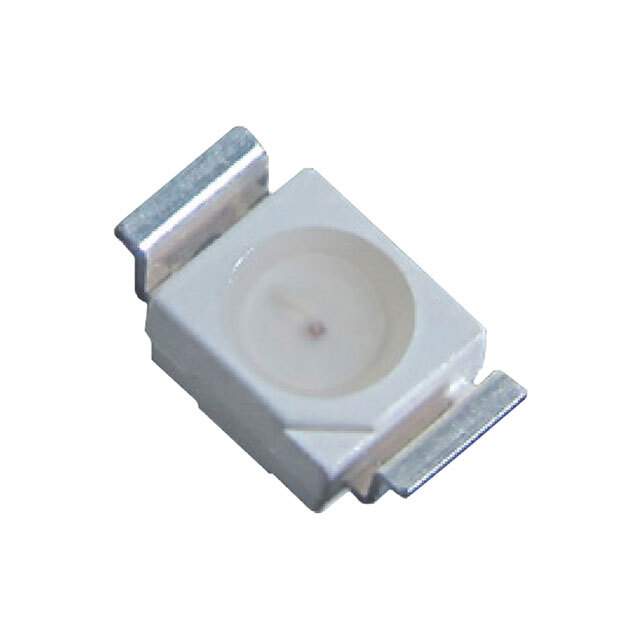

Same model may have multiple batches, images only for reference.

XZM2DG45WT-9

Name: XZM2DG45WT-9
Brand: SunLED
SKU: 1349545
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	XZM2DG45WT-9
Manufacturer	SunLED
Catalog	LED Indication - Discrete
Description	LED GREEN CLEAR 2PLCC SMD / Green 525nm LED Indication - Discrete 3.2V 2-SMD, Z-Bend, Bottom Entry
Datasheet	XZM2DG45WT-9 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	SunLED
Package	Tape & Reel
Color	Green
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	1395mcd
Lens Style	Round with Flat Top
Lens Size	2.40mm Dia
Voltage - Forward (Vf) (Typ)	3.2V
Current - Test	20mA
Viewing Angle	120°
Mounting Type	Surface Mount, Bottom Entry
Wavelength - Dominant	525nm
Wavelength - Peak	520nm
Package / Case	2-SMD, Z-Bend, Bottom Entry
Supplier Device Package	2-PLCC
Size / Dimension	3.20mm L x 2.80mm W
Height (Max)	2.10mm
Base Product Number	XZM2DG45
Standard Package	2,000
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1349545-XZM2DG45WT-9
Ultra Librarian 3D Model	Ultra Librarian XZM2DG45WT-9 CAD Model

Alternative Products

Description

The 1349545-XZM2DG45WT-9 is a green LED indication device from SunLED that features a millicandela rating of 1395mcd and a viewing angle of 120°.

Millicandela Rating: 1395mcd
Viewing Angle: 120°
Mounting Type: surface mountable
Package: 2-SMD, Z-Bend, Bottom Entry
Voltage-Forward (Vf) (Typ): 3.2V
Current-Test: 20mA
Wavelength-Dominant: 525nm
Wavelength-Peak: 520nm
Lens Style: round with a flat top
Lens Size: 2.40mm Dia
Applications: optoelectronics
