Same model may have multiple batches, images only for reference.

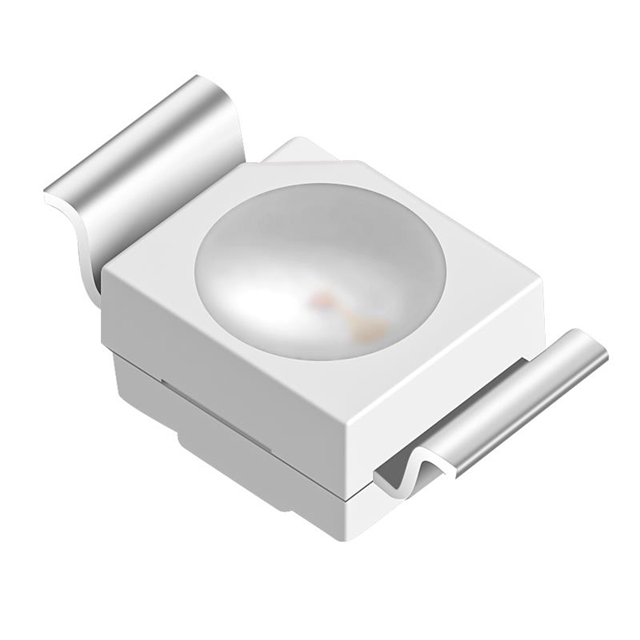

XZDGK45WT-9 Real Image
Same model may have multiple batches, images only for reference.

XZDGK45WT-9

Part No XZDGK45WT-9
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2PLCC / Green 525nm LED Indication - Discrete 3.3V 2-SMD, Z-Bend
Datasheet
XZDGK45WT-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr SunLED
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 497mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 525nm
Wavelength - Peak 515nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package 2-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number XZDGK45
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1349544-XZDGK45WT-9
Ultra Librarian 3D Model Ultra Librarian XZDGK45WT-9 CAD Model

Description

The XZDGK45WT-9 is a discrete LED manufactured by SunLED.

  • Light Color: green
  • Dominant Wavelength: 525nm
  • Peak Wavelength: 515nm
  • Millicandela Rating: 497mcd
  • Current Rating: 20mA
  • Packaging: tape and reel
  • Standard Package: 2000
  • Applications: automotive, industrial, and telecommunications
