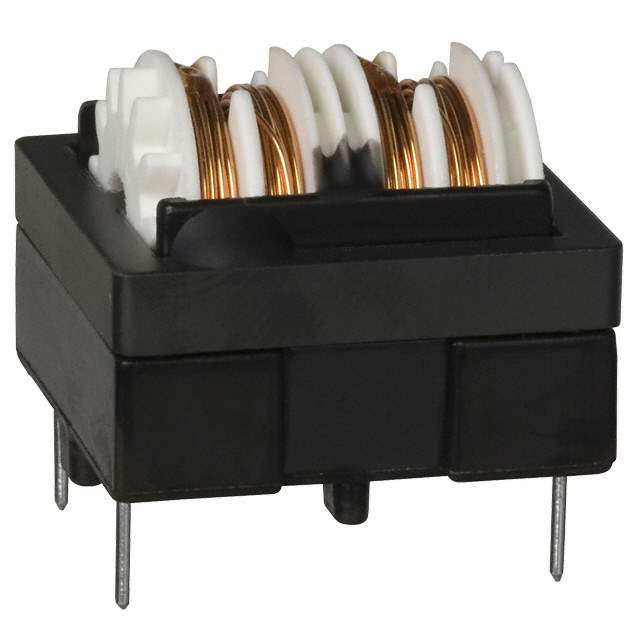

LF2420NP-252 Real Image
Same model may have multiple batches, images only for reference.

LF2420NP-252

Part No LF2420NP-252
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 2.5MH 2A 2LN TH / 2.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 130mOhm
Datasheet
LF2420NP-252 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Sumida America Components Inc.
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.5 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 130mOhm
Mounting Through Hole
Size / Dimension 0.953" L x 0.953" W (24.20mm x 24.20mm)
Height (Max) 0.827" (21.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 308-1359
Standard Package 100
Win Source Part Number 1328201-LF2420NP-252
Ultra Librarian 3D Model Ultra Librarian LF2420NP-252 CAD Model

Description

The LF2420NP-252 is a common mode choke filter with a power line filter type.

  • Manufacturer: Sumida America Components Inc.
  • Product Name: LF2420NP-252
  • Type: Common Mode Choke Filter
  • Filter Type: Power Line
  • Size/Dimension: 0.953" L x 0.953" W (24.20mm x 24.20mm)
  • Height: 0.827" (21.00mm)
  • Voltage Rating: AC and DC
  • Maximum Current Rating: 2A
  • Standard Package: 100
  • Mounting Type: Through-Hole
  • Inductance: 2.5 mH @ 1 kHz
  • DC Resistance: 130mOhm max
  • ECCN: EAR99
  • ROHS3: Compliant
  • MSL Level: 1 (Unlimited)
