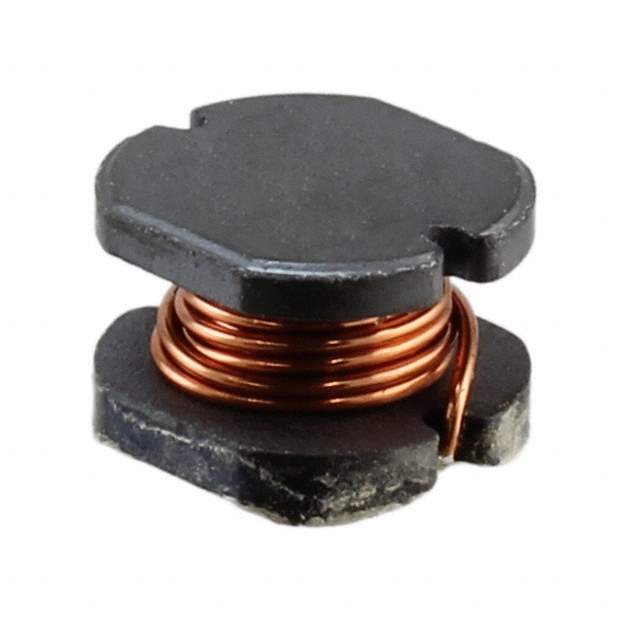

CD75NP-151KC

Part No CD75NP-151KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 150UH 580MA 640MOHM SM / 150 µH Unshielded Inductor 580 mA 640mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 580 mA
Shielding Unshielded
DC Resistance (DCR) 640mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500
Win Source Part Number 1330377-CD75NP-151KC
Ultra Librarian 3D Model Ultra Librarian CD75NP-151KC CAD Model

Description

The Sumida America Components Inc. 1330377-CD75NP-151KC is a fixed inductor component with a size of 0.307" L x 0.276" W (7.80mm x 7.00mm).

  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Inductance: 150 µH
  • Tolerance: ±10%
  • DC Resistance: 640mOhm max
  • Temperature Range: -40°C ~ 100°C
  • Packaging: Nonstandard
  • Manufacturer: Sumida America Components Inc.
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
