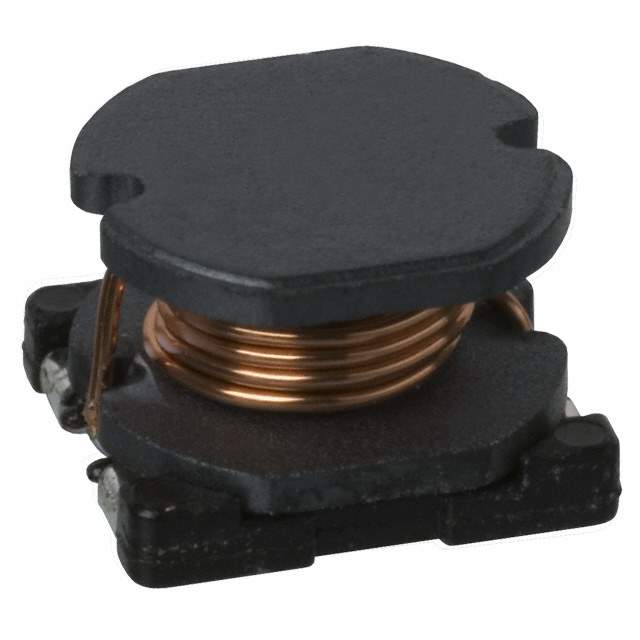

CR75NP-101KC Real Image
Same model may have multiple batches, images only for reference.

CR75NP-101KC

Part No CR75NP-101KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 720MA 430MOHM SM / 100 µH Unshielded Drum Core, Wirewound Inductor 720 mA 430mOhm Max Nonstandard
Datasheet
CR75NP-101KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CR75
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 720 mA
Shielding Unshielded
DC Resistance (DCR) 430mOhm Max
Frequency - Self Resonant 9.2MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-2330-6,CR75NP-101KCTR-ND,CR75NP-101KCTR,CR75NP-101KCTR-NDL,308-2330-2,308-2330-1,Q4529856
Standard Package 1,000
Win Source Part Number 992218-CR75NP-101KC
Ultra Librarian 3D Model Ultra Librarian CR75NP-101KC CAD Model

Description

The CR75NP-101KC is a drum core, wirewound inductor from Sumida America Components Inc.

  • Type: Drum Core, Wirewound Inductor
  • Manufacturer: Sumida America Components Inc.
  • Shielding: Non-Shielded
  • Core Material: Ferrite
  • Inductance: 100 µH
  • Tolerance: ±10%
  • Max Current Rating: 720 mA
  • DC Resistance (DCR): 430mOhm Max
  • Frequency Self-Resonant: 9.2MHz
  • Operating Temperature: -40°C to 100°C
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
  • Dimension: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Applications: Power supplies, DC-DC converters, EMI/RFI filters
