Same model may have multiple batches, images only for reference.

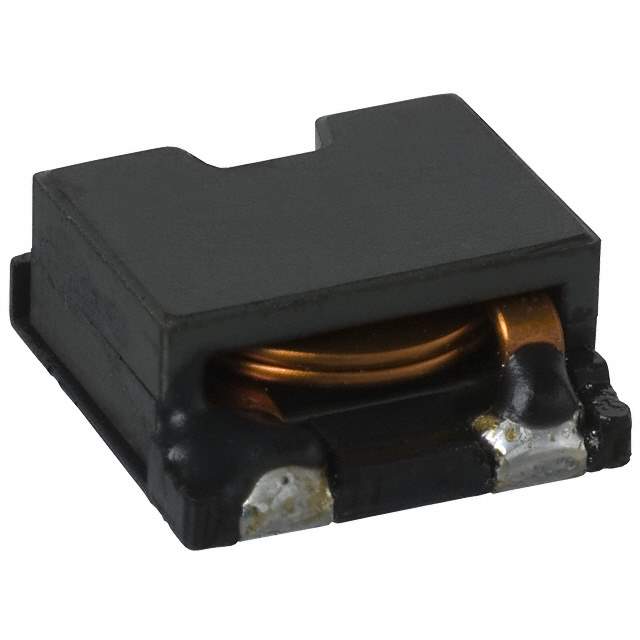

CEP125-0R8NC-UD Real Image
Same model may have multiple batches, images only for reference.

CEP125-0R8NC-UD

Part No CEP125-0R8NC-UD
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 800NH 16.5A 2.5 MOHM / Inductor Power Shielded Wirewound 0.8uH 30% 100KHz Ferrite 18A 0.0022Ohm DCR T/R
Datasheet
CEP125-0R8NC-UD Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CEP125
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 800nH
Tolerance ±30%
Current Rating 16.5A
Current - Saturation 25.7A
Shielding Shielded
DC Resistance (DCR) 2.5 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.220" (5.60mm)
Win Source Part Number 771482-CEP125-0R8NC-UD
Popularity Medium
Supply and Demand Status Limited
Family Name CEP
Introduction Date July 30, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CEP125-0R8NC-UD CAD Model

Description

The Sumida America Components Inc. CEP125 series wirewound inductor is shielded.

  • Inductance: 800nH
  • Current Rating: 16.5A
  • Operating Temperature: -40°C to 125°C
  • Package: nonstandard
  • Tolerance: ±30%
  • Mounting: SMD
  • DC Resistance: 2.5 mOhm Max
