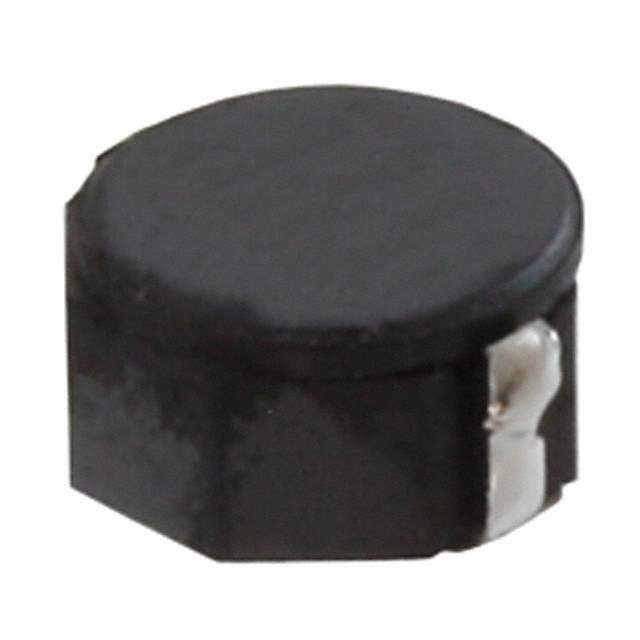

CDRH8D43NP-150NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D43NP-150NC

Part No CDRH8D43NP-150NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS
Datasheet
CDRH8D43NP-150NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH8D43
Packaging Reel - TR
Material - Core Ferrite
Inductance 15μH
Tolerance ±30%
Current Rating 2.3A
Current - Saturation 2.9A
Shielding Shielded
DC Resistance (DCR) 53 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1160899-CDRH8D43NP-150NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH8D43NP-150NC CAD Model

Description

The CDRH8D43NP-150NC is a high-quality shielded inductor manufactured by Sumida America Components Inc.

  • Win Source Part Number: 1160899-CDRH8D43NP-150NC
  • Current Rating: 2.3A
  • Inductance: 15μH
  • Mounting: Surface mount, SMD inductor
  • Package Size: 8.00mm x 8.00mm
  • Tolerance: ±30%
  • Material: Ferrite
  • Supply and Demand Status: Limited
  • Ideal for: Applications that require high precision and stability
