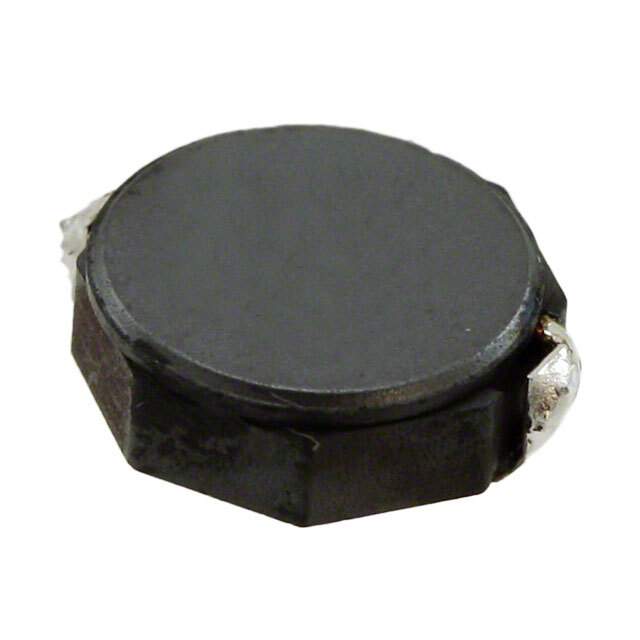

CDRH8D28NP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D28NP-4R7NC

Part No CDRH8D28NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.5A 24.7 MOHM
Datasheet
CDRH8D28NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 4.5A
Current - Saturation 3.4A
DC Resistance (DCR) 24.7 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 000237-CDRH8D28NP-4R7NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH8D28NP-4R7NC CAD Model

Description

The CDRH8D28NP-4R7NC is engineered for high efficiency and reliability, offering excellent inductance stability for a variety of technical applications. It features a high magnetic permeability core for improved inductance performance.

Applications

  • Networking devices
  • Portable electronics
  • Medical instruments
  • Renewable energy systems

Features and Benefits

  • Stable performance with high current ratings
  • Compact design allowing ease of integration
  • Reduced electromagnetic interference for superior signal integrity
  • RoHS compliant, supporting sustainable practices

This inductor is well-suited for projects demanding reliability and compact design solutions.
