Same model may have multiple batches, images only for reference.

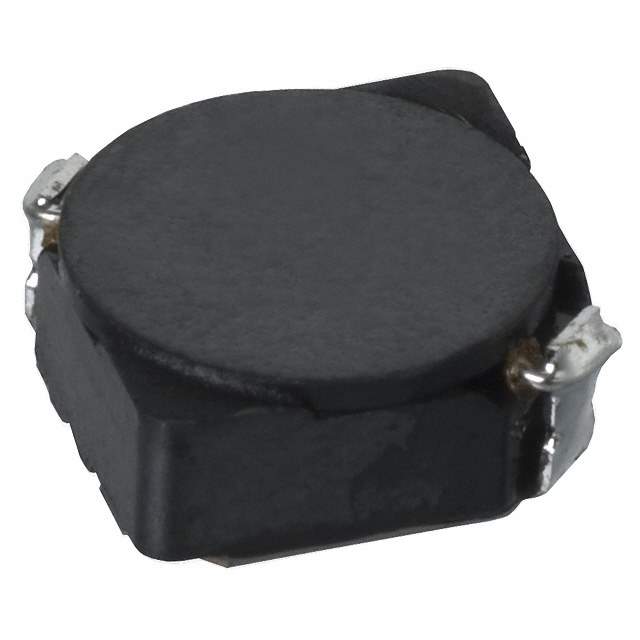

CDRH6D28NP-3R0NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28NP-3R0NC

Part No CDRH6D28NP-3R0NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3UH 3A 24 MOHM SMD
Datasheet
CDRH6D28NP-3R0NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 3μH
Tolerance ±30%
Current Rating 3A
DC Resistance (DCR) 24 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 013089-CDRH6D28NP-3R0NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH6D28NP-3R0NC CAD Model

Description

Product Description

The CDRH6D28NP-3R0NC is suited for applications that require efficient energy transfer and compactness. This shielded inductor offers exceptional ease of installation and reliable operational stability.

Features and Benefits

  • Compact design for optimal efficiency
  • Exceptional thermal management
  • Strong electromagnetic shielding
  • Reliable high-current performance

Applications

  • Battery chargers
  • Consumer electronics
  • Portable devices
  • Networking equipment
