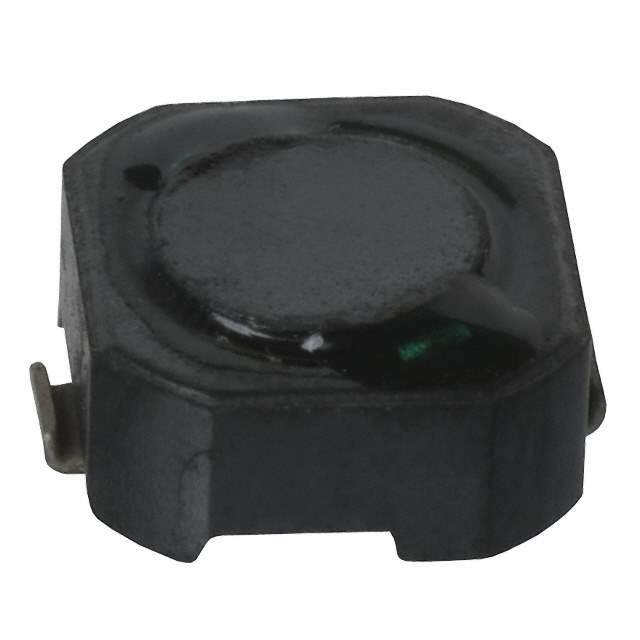

The CDRH62B-101MC is a shielded power inductor manufactured by Sumida America Components Inc. It is designed for use in DC-DC converters and other power supply applications where a higher current rating is required.

Applications:

• DC-DC converters
• Power supplies
• Voltage regulators
• Filtering circuits
• Buck, boost, and buck-boost converters

Features:

• Shielded construction to minimize EMI (Electromagnetic Interference)
• Low DC resistance (DCR) for high efficiency
• High current carrying capacity
• Compact size for its current rating
• RoHS compliant and lead-free

Benefits:

• Reduces electromagnetic interference
• Improves power supply efficiency
• Handles high current loads
• Saves board space
• Meets environmental regulations

Specifications:

The CDRH62B-101MC has an inductance value of 100uH. The tolerance is typically ±20%. The saturation current is typically around 1.8A to 2.5A. The DC resistance (DCR) is typically less than 0.3 ohms. The operating temperature range is typically -40°C to +125°C. The dimensions are approximately 6.6mm x 6.6mm x 3.0mm. The shielding is achieved through a magnetic core material.

These inductors are available in tape and reel packaging for automated pick and place assembly.
